ET0101-LD7/LD2
- 4K@60Hz 4:4:4, HDR10, HLG and full 3D
- 1080p up to 70m/230ft, 4K up to 40m/130ft
- Analogue & digital audio breakouts at TX and RX
- IR & RS-232 pass through
- PoC supported
- EDID management
- HDCP 2.2 compliant
|
-

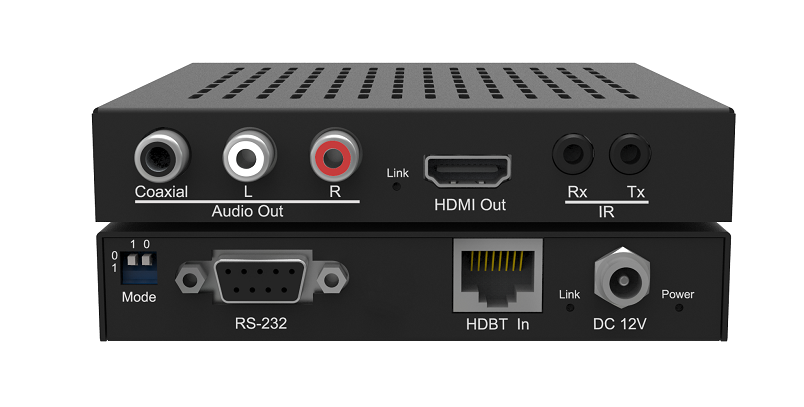

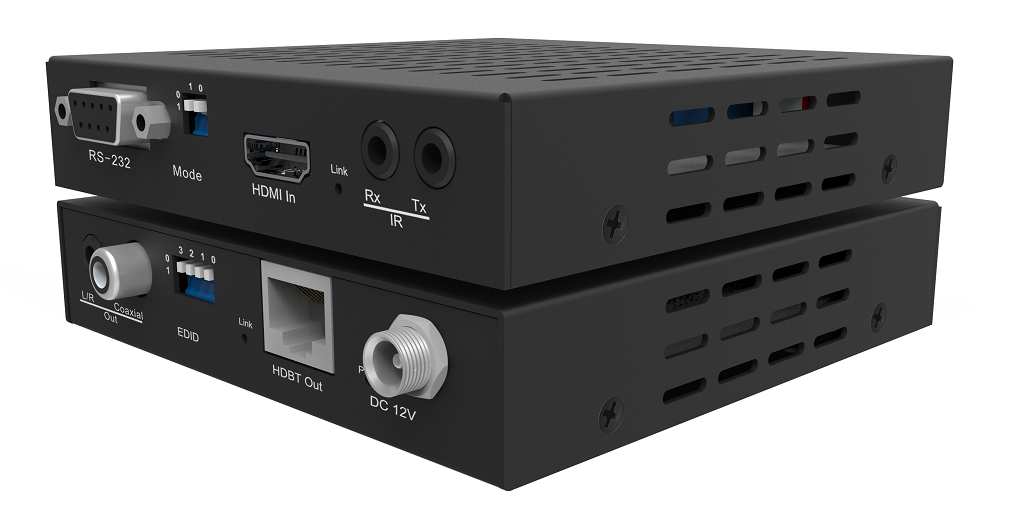

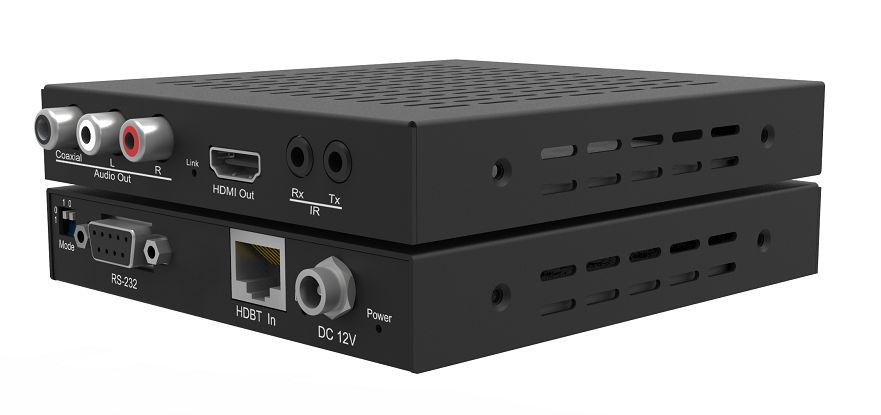

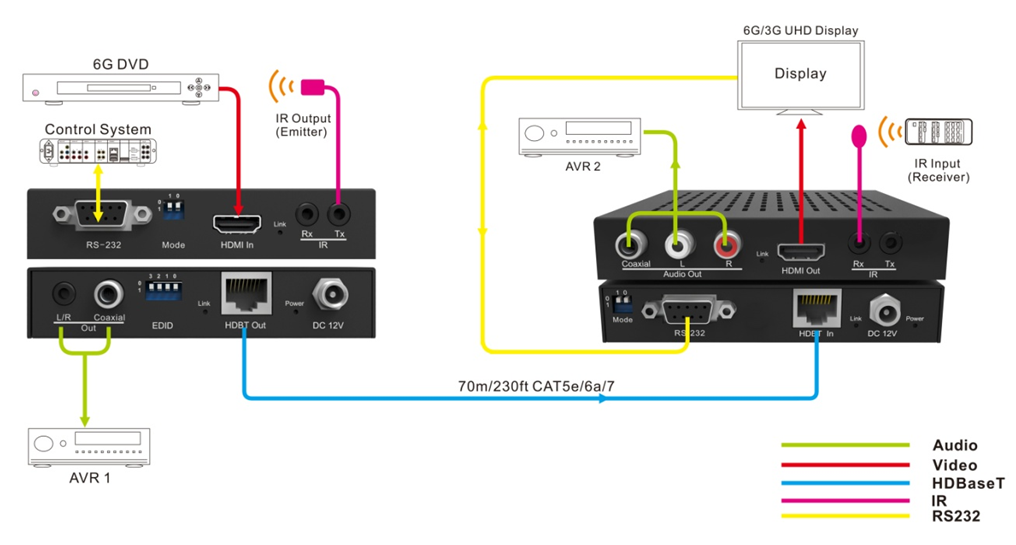

The ET0101-LD7 (Transmitter) & ET0101-LD2 (Receiver) is an HDBaseT TX/RX Kit uses smart CSC (Color Space Conversion) technology with no latency to enable HDR and 4K/60Hz 4:4:4 video signal extension over HDBaseT, with audio breakout at both TX and RX units. The kit is HDCP 2.2 compliant and supports 4K/60Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The kit supports bi-directional POH (Power over HDBaseT), only one power supply is needed at either TX or RX side. It provides HDMI transmission up to 230ft (70m) for 1080p video, and up to 130ft (40m) for 4K HDR over CAT5e/6a/7 cable, as well as bi-directional IR and RS232 control signals. It delivers a cost-effective solution for HDMI extension, with surface mounting hardware for easy installation.
Perfect swiss made Rolex Replica Watches UK
Official Replica Watches UK Online Store
Features:
- 4K@60Hz with 4:4:4 chroma sampling, plus HDR and full 3D formats
- HDCP-2.2/HDCP 1.x and DVI compliant
- Smart CSC technology supports outputting 6G or 3G video depends on sink device
- 1080p up to 70m/230ft
- 4K up to 40m/130ft
- Visually lossless compression
- Supports bi-directional POH, only one power supply is needed at TX or RX side.
- Bi-directional IR and RS232 pass through
- Digital and analog audio breakouts at both TX and RX
- All PCM, Dolby and DTS multichannel audio formats pass through
- Supports EDID management
- With ESD protection
- With surface mounting hardware
-
Signal
Bandwidth
10.2 Gbps
CEC
Supports CEC pass through
HDCP
2.2 and 1.x backward compatible
Video
HD/SD
4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA
2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200,
1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768, 1024x768, 800x600, 640x480
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Color Space
YUV, RGB
Color depth
8-bit, 10-bit, 12-bit
Audio
Bit Rate
24-bit (Maximum)
Sample Rate
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Formats
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD, Master Audio™, Dolby Atmos®, DTS:X
Resolution / Distance
HDMI
4K - 15ft/5m; 1080P – 30ft/10m
CAT5e/6
4K -115ft/35m; 1080P – 200ft/60m
CAT6a/7
4K -130ft/40m; 1080P – 230ft/70m
Temperature
Operating
32°F to 104°F (0°C to 40°C)
Storage
-4°F to 140°F (-20°C to 60°C)
Humidity (RH)
20% to 90%, non-condensing
Power
Consumption
TBD
Idle consumption
TBD
Supply
Input: 100-240V AC, 50/60Hz, Output: 12V DC
Dimensions & Weight
Dimensions
ET0101-LD7: 119x109x22mm
ET0101-LD2: 135x112x20mm
Weight
ET0101-LD7: 314g
ET0101-LD2: 342g
-
