Product details

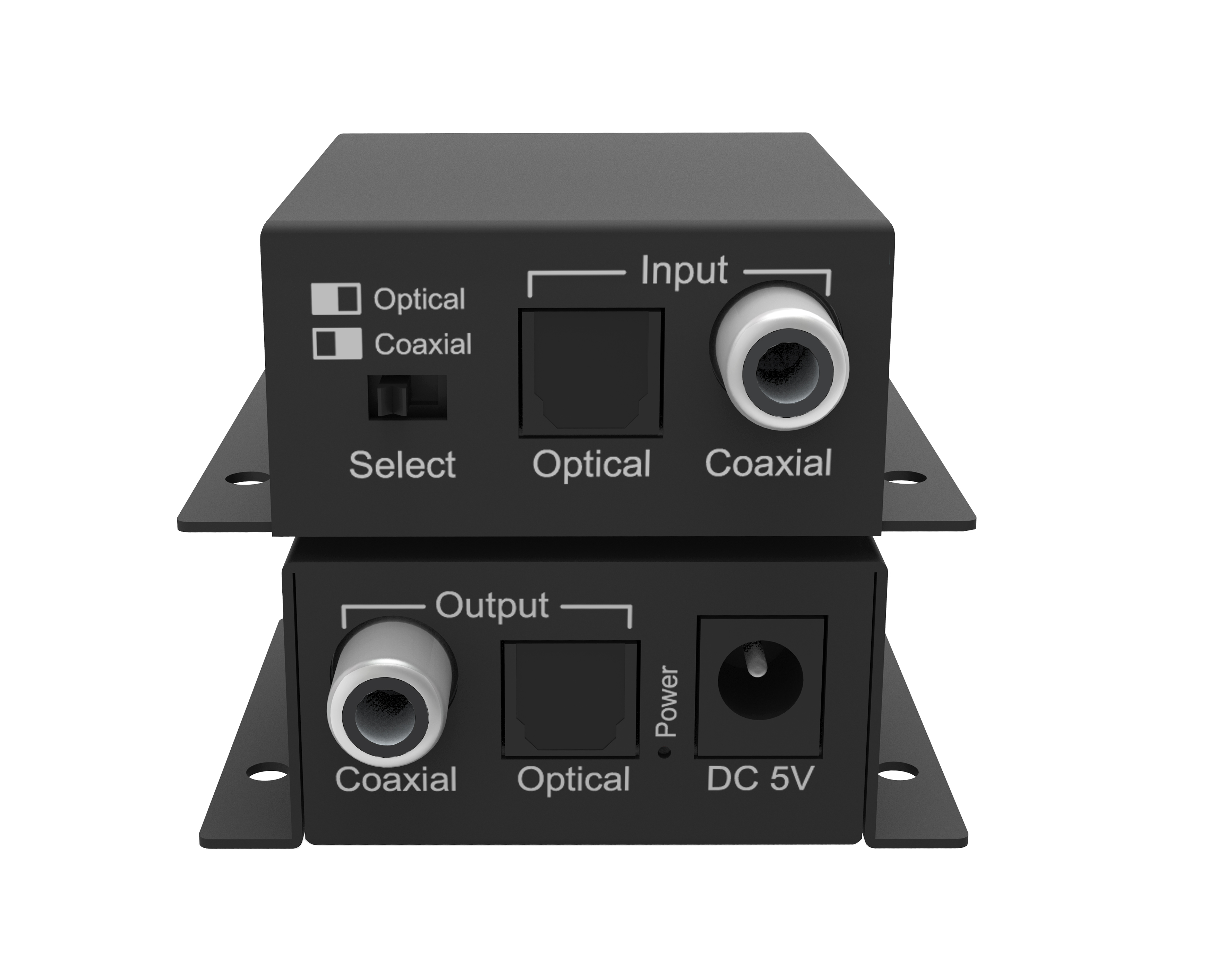

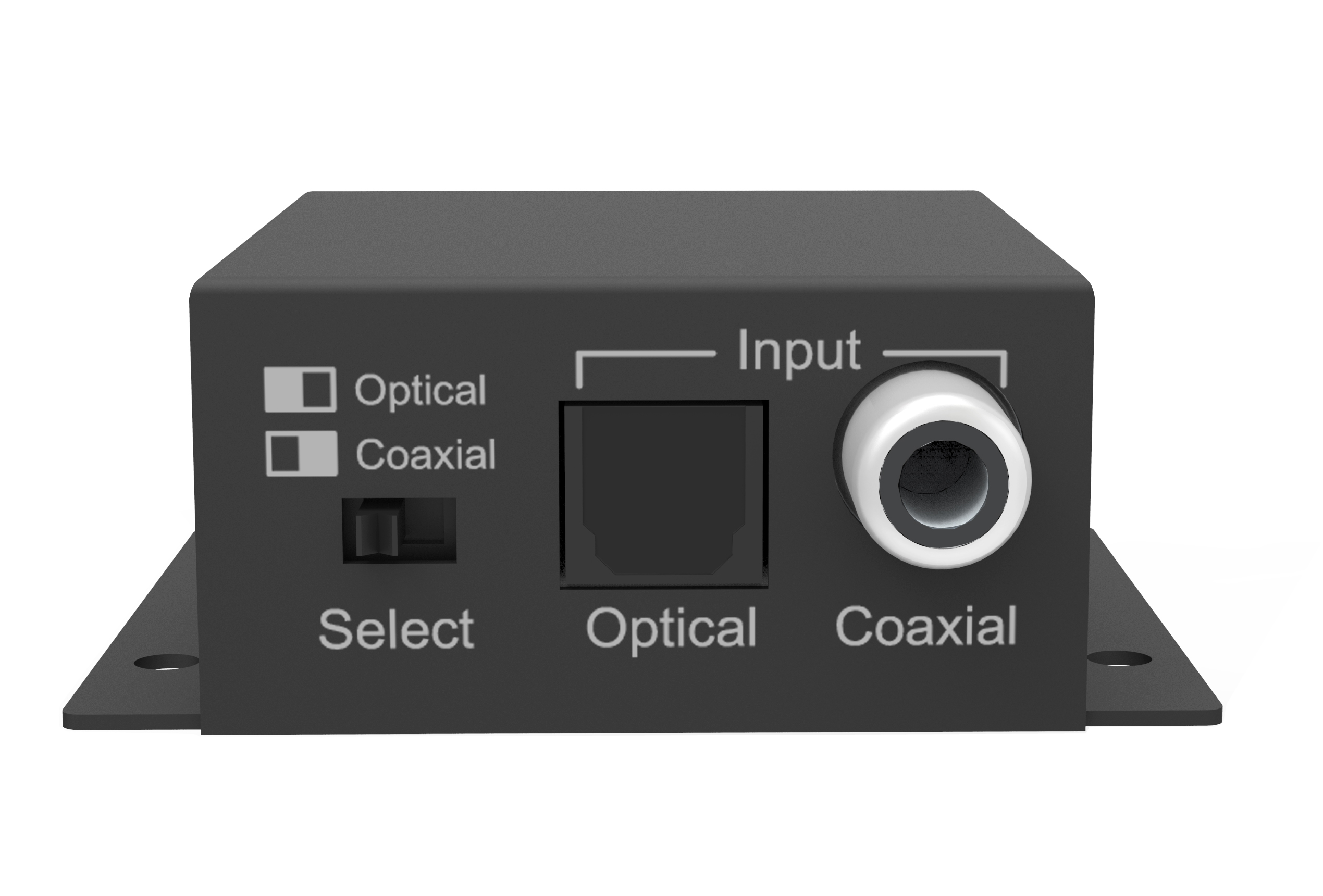

CV0202-OCS

The CV0202-OCC is designed to convert coaxial or optical digital audio signals from one signal type to another. The outputs are simultaneous so audio can be distributed to multiple locations. The CV0202-OCS supports 192KHz sample rates for enhanced sound reproduction. This provides the perfect cost effective solution when connection a source with only optical audio outputs to a device that has only coaxial digital inputs or vice versa.


Features:

  • Supports sample rates 32KHz, 44.1KHz, 96KHz and 192KHz, up to 24-bit resolution.
  • Converts digital audio formats
  • Both optical and coaxial digital outputs work concurrently regardless of input type selected.
  • Plug-and-play
  • Small compact size

CV0202-OCS

The CV0202-OCC is designed to convert coaxial or optical digital audio signals from one signal type to another. The outputs are simultaneous so audio can be distributed to multiple locations. The CV0202-OCS supports 192KHz sample rates for enhanced sound reproduction. This provides the perfect cost effective solution when connection a source with only optical audio outputs to a device that has only coaxial digital inputs or vice versa.


Features:

  • Supports sample rates 32KHz, 44.1KHz, 96KHz and 192KHz, up to 24-bit resolution.
  • Converts digital audio formats
  • Both optical and coaxial digital outputs work concurrently regardless of input type selected.
  • Plug-and-play
  • Small compact size

  • Audio Input Connectors

    1x SPDIF optical audio

    1x Coaxial digital

    Audio Output Connectors

    1x SPDIF optical audio

    1x Coaxial digital

    Dimensions(W x D x H)

    57mm x 47mm x 22mm, without feet

    Shipping Weight

    0.4KG

    Operating Temperature

    32°F to 104°F (0°C to 40°C)

    Storage Temperature

    -4°F to 140°F (-20°C to 60°C)

    Power Supply

    5V/1A DC
