Product details

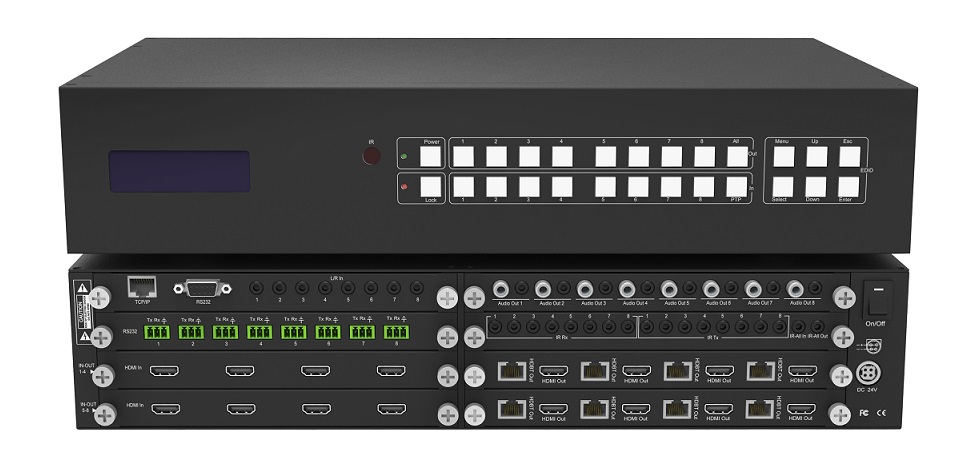

MT0808-FSD

  • 19inch 2U modular design, flexible horizontal I/O cards
  • 4K@60Hz 4:4:4, HDR10, HLG and full 3D
  • 8x HDMI input, 8x HDBaseT output & 8 mirrored HDMI output
  • 1080p up to 100m/330ft, 4K up to 70m/230ft
  • Audio embedding & de-embedding
  • LCD panel, IR, RS232, TCP/IP and Web GUI for control
  • PoC supported
  • EDID management
  • HDCP 2.2 compliant

MT0808-FSD

  • 19inch 2U modular design, flexible horizontal I/O cards
  • 4K@60Hz 4:4:4, HDR10, HLG and full 3D
  • 8x HDMI input, 8x HDBaseT output & 8 mirrored HDMI output
  • 1080p up to 100m/330ft, 4K up to 70m/230ft
  • Audio embedding & de-embedding
  • LCD panel, IR, RS232, TCP/IP and Web GUI for control
  • PoC supported
  • EDID management
  • HDCP 2.2 compliant

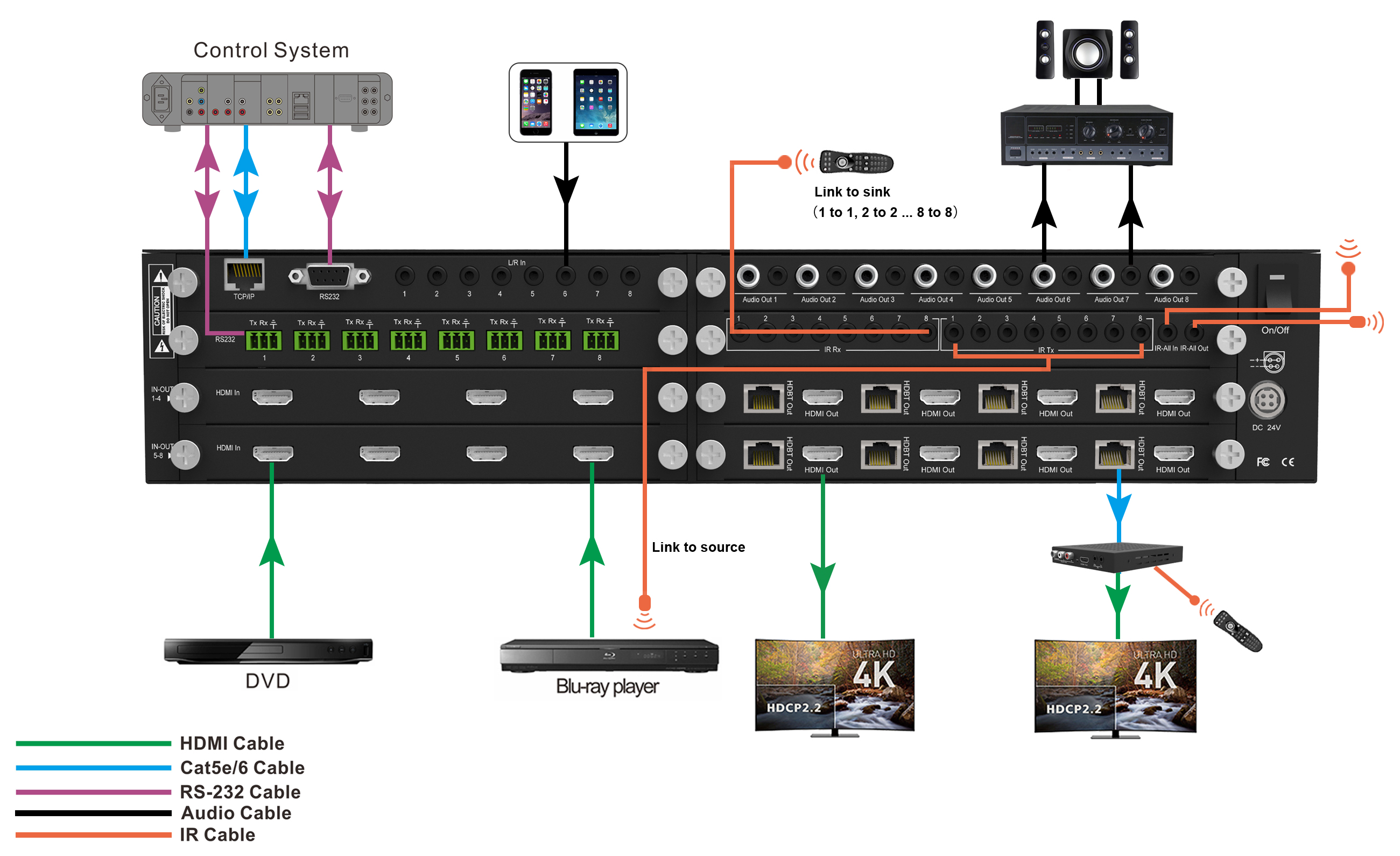

  • The MT0808-FSD is a Pro Matrix Switcher featured with 8x HDMI Inputs and 8x HDMI & 8x HDBaseT Outputs. This unit supports 4K/UHD video @ 60Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18Gbps. It is also compatible with high dynamic range (HDR10) formats and all 3D formats. It supports audio embedding and de-embedding, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Based on smart HDBaseT technology, the output distance can reach up to 100m/330ft for 1080p and 70m/230ft for 4K via Cat5e/Cat6. Each source can be routed to any display using the front-panel push buttons, IR remote control, RS-232 interface, TCP/IP or Web GUI.
    Luxury Swiss Replica replica relojes Watches UK: luxurwatches.co.uk

    The Most Accurate Fake Luxury Watches In The World: sellukwatches.co.uk

    The MT0808-FSD provides the most flexible and cost effective solution in the Audio/Video market. It has been specifically designed to operate in challenging AV environment.


    Features:


    • 19inch 2U modular design, flexible horizontal I/O cards
    • 8x HDMI inputs, 8x HDBaseT outputs & 8 mirrored HDMI outputs
    • Supports 4K@60Hz 4:4:4, HDR, HLG and full 3D
    • 8x HDBaseT output support transmitting 1080p up to 100m/330ft, 4K up to 70m/230ft
    • Supports audio de-embedding on outputs as Coaxial and L/R audio output
    • V
