Product details

DA0104-NA1

  • 1x HDMI input, 4x HDMI output
  • 4K@60Hz 4:4:4, HDR10, HLG, DolbyVision and full 3D
  • Analogue & digital audio de-embedding from output
  • EDID management
  • HDCP 2.2 complian

DA0104-NA1

  • 1x HDMI input, 4x HDMI output
  • 4K@60Hz 4:4:4, HDR10, HLG, DolbyVision and full 3D
  • Analogue & digital audio de-embedding from output
  • EDID management
  • HDCP 2.2 complian

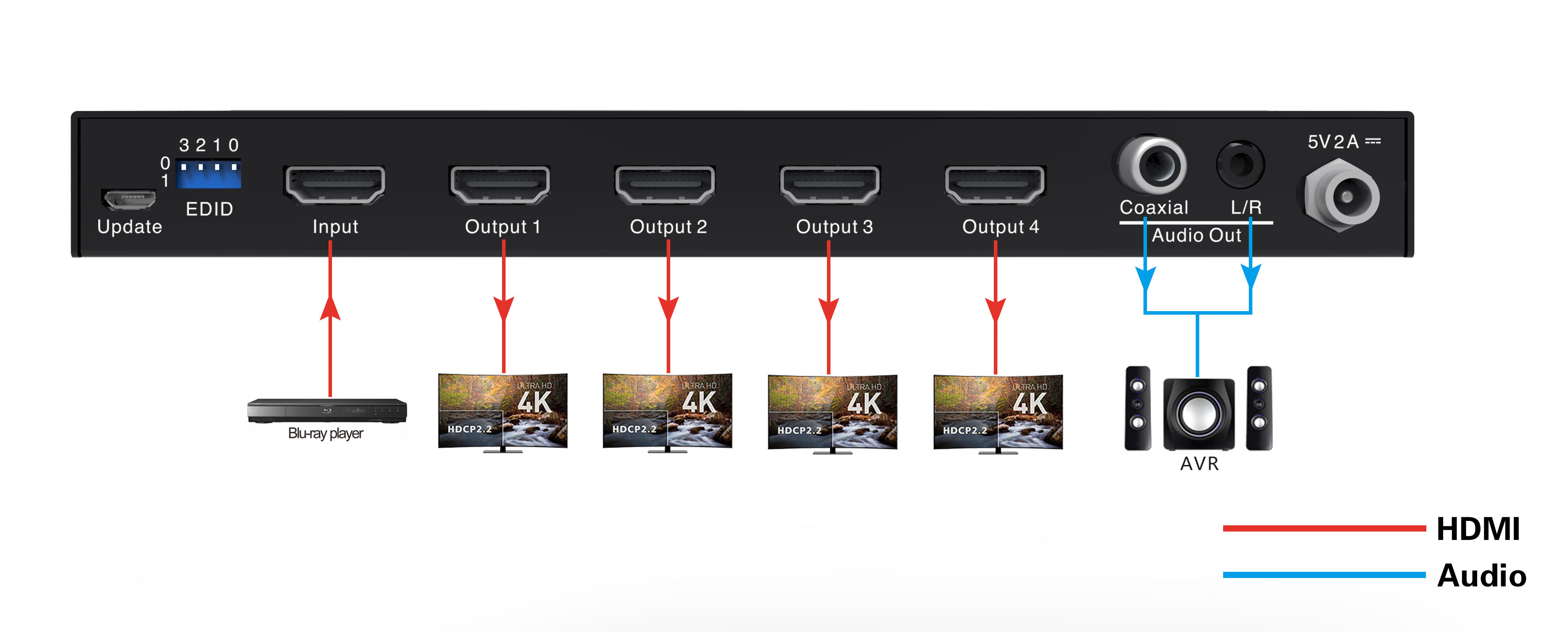

  • The DA0104-NA1 is an HDMI 2.0 Splitter distributes a single HDMI input to 4 HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K@60Hz (YUV 4:4:4) resolution and is capable of provide high quality of audio and video performance. It also features a coaxial and L/R output to be allowed to extract the audio from the HDMI input. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192kHz.


    Features:

    • Supports HDMI 2.0 4K@60Hz (YUV 4:4:4)
    • HDCP 2.2/HDCP1.x and DVI compliant
    • Supports UHD TV resolutions up to 4K2k (3840x2160@24/25/30/50/60 & 4096x2160 @24/25/30/60)
    • Displays any of 1 UHD sources on 2 UHD TV displays simultaneously
    • Full 3D pass-Through
    • Supports LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
    • With EDID Management
    • With Micro-USB port for firmware upgrade.
    • Digital & Analog audio breakout



  • Video Bandwidth

    600MHz/6Gbps per Color

    Input Ports

    1x HDMI Type A,19-pin, female

    Output Ports

    4x HDMI Type A, 19-pin, female

    Resolutions

    Up to 4K@50/60Hz, (YUV 4:4:4), Full 3D Pass-through

    HDMI Cable Distance

    5m for 1080p@60Hz, 3m for 4K@60Hz (YUV 4:4:4)

    Power Supply

    5V/2A DC

    ESD Protection

    Human body model:
    ±8 kV (air-gap discharge)
    ±4 kV (contact discharge)

    Dimensions

    202mm (W) x 70mm (D) x23mm (H)

    Weight

    0.6g

    Chassis Material

    Galvanized Sheet

    Chassis Color

    Black

    Operating Temperature

    0˚C~40˚C/32˚F~104˚F

    Storage Temperature

    −20˚C~60˚C/−4˚F~140˚F

    Relative Humidity

    20~90% RH (non-condensing)

    Rack-Mountable

    Rack ears included

    NOTE: Specifications are subject to change without notice.
