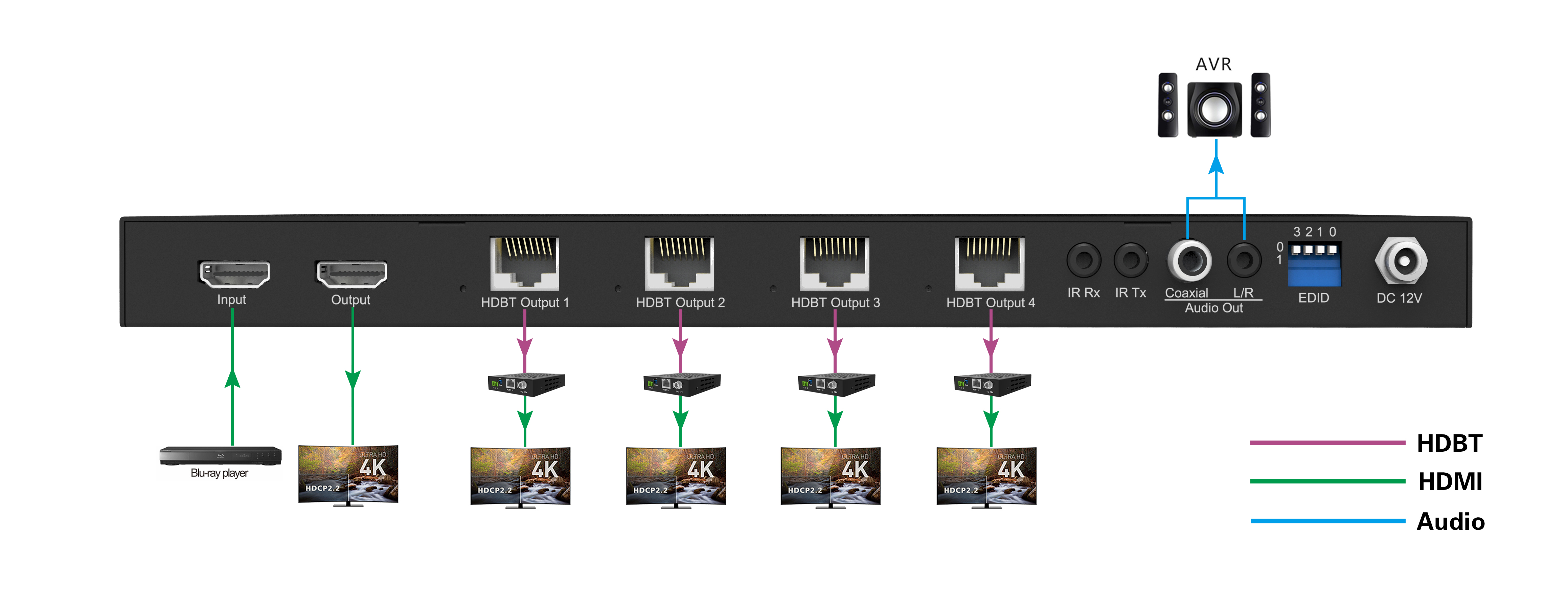

The DA0105-LDA is an HDBaseT Distribution Amplifier splits a single HDMI or DVI audio/video source to 4 HDBaseT outputs and 1 HDMI loop out. The HDMI loop out can be used to monitor local displays or cascading to multiple devices. This splitter supports all the latest features of the HDMI 2.0 specification such as 4K UHD resolutions (4K2K@60Hz YUV 4:4:4), HDR (High Dynamic Range), Deep Color, and High Definition audio. Based on HDBaseT Lite chipset inside, the output distance can reach up to 70m via signal CAT cable. It also support extracting the audio from the HDMI output via RCA (S/PDIF) and L/R (PCM).

Features:

• Supports resolutions up to 4K@60Hz 4:4:4, full 3D
• HDCP 2.2/HDCP 1.x and DVI compliant

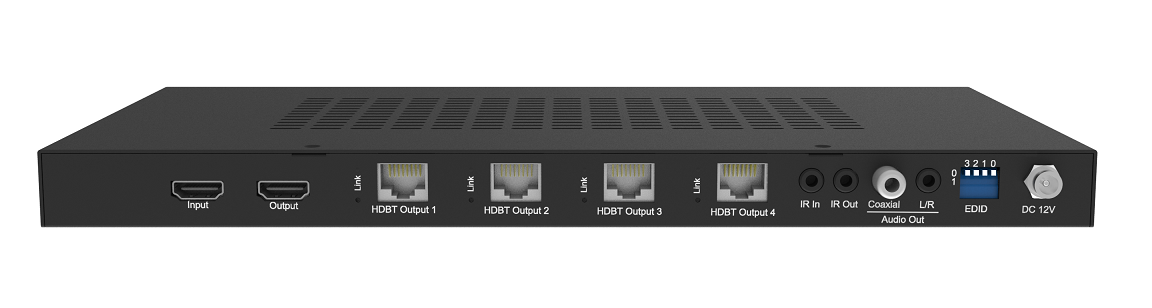

• Splits 1x HDMI source to 4x HDBaseT outputs and 1x HDMI loop out
• Support cascading to multiple devices
• HDBaseT Lite chipset inside for the output distance up to70mfor 1080p,40mfor 4K.
• Power the remote receivers, with POC (Power over cable), no power supply needed for the receivers
• Extract the audio from HDMI source via analog L/R audio and coaxial digital outputs
• Dolby TrueHD and DTS-HD master audio pass through HDMI output
• Advanced EDID management for rapid integration of sources and displays

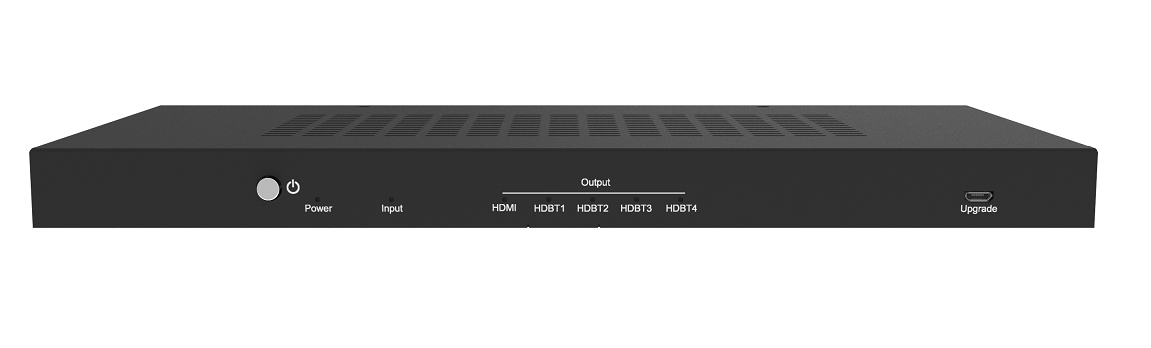

• LEDs for power-on and outputs indication
• Bi-directional IR supported
• Easy installation with mounting brackets.
• Small compact size
