Product details

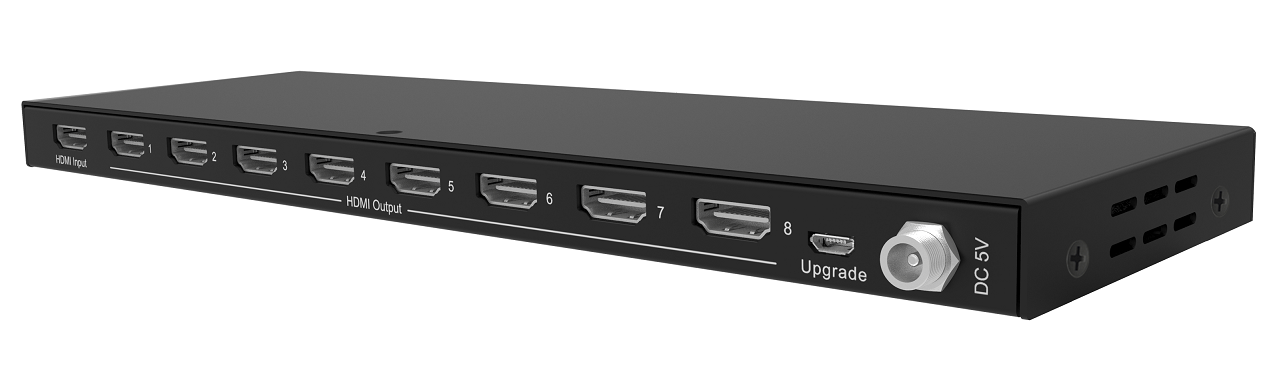

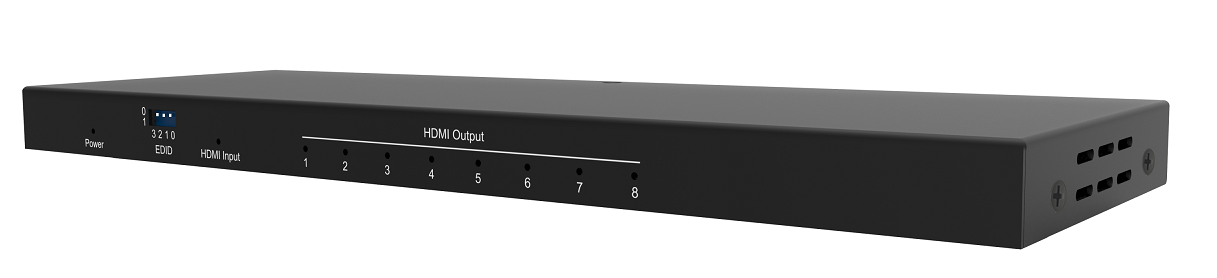

DA0108-N02
- 1x HDMI input, 8x HDMI output
- 4K@60Hz 4:4:4, HDR10, HLG, DolbyVision and full 3D
- EDID management
- HDCP 2.2 compliant
- Ultra slim design
|
-

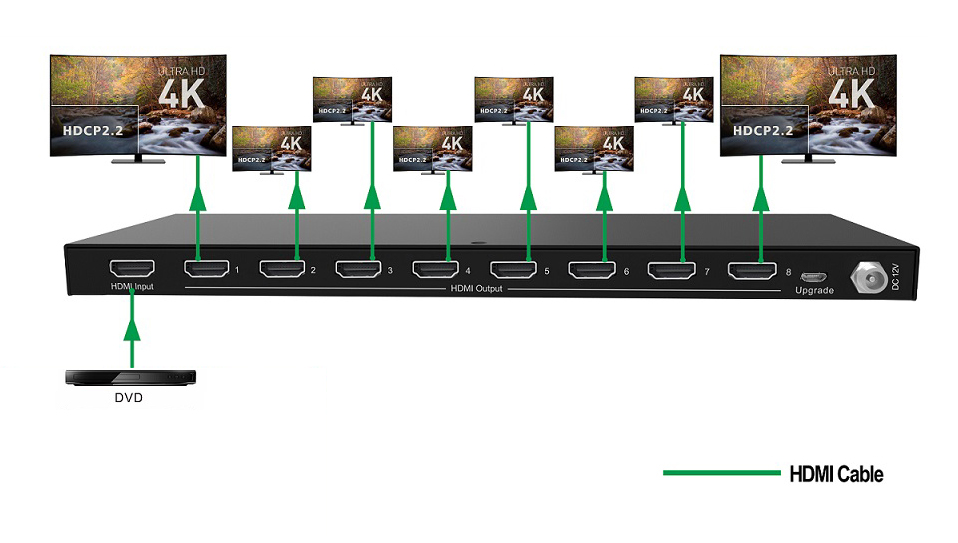

The DA0108-N02 is 4K HDMI 2.0 splitter which can distribute a single HDMI source to eight simultaneous outputs. It provides high performance audio and video output through HDMI cables up to 4K@60Hz 4:4:4 resolution.
Features:
- Supports 1x HDMI input and 8x HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Advanced EDID management
- HDCP 2.2 compliant.
-
NOTE: Specifications are subject to change without notice. Weight and Dimensions are approximate.Video Bandwidth
300MHz/6Gbps per Color
Input Ports
1x HDMI Type A, 19-pin, female,
1x Mini USB (Firmware upgrade)
Output Ports
8x HDMI Type A, 19-pin, female
Resolutions
Up to 4K@50/60Hz 4:4:4, Full 3D Pass-through
HDMI Cable Distance
5m for 1080p@60Hz, 3m for 4K@60Hz 4:4:4
Power Supply
12V/2A DC
ESD Protection
Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)Dimensions
273mm (W) x 109mm (D) x 13mm (H)
Weight
705g
Chassis Material
Aluminum
Chassis Color
Black
Operating Temperature
0˚C~40˚C/32˚F~104˚F
Storage Temperature
−20˚C~60˚C/−4˚F~140˚F
Relative Humidity
20~90% RH (non-condensing)
Rack-Mountable
Rack ears included
-
