Product details

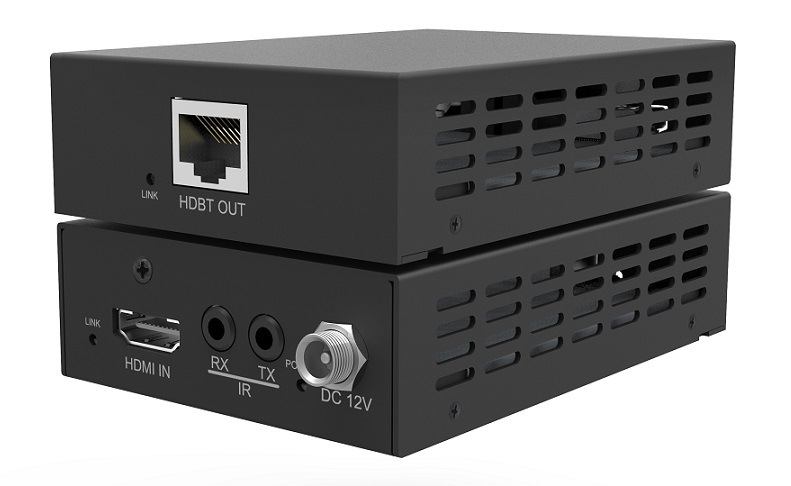

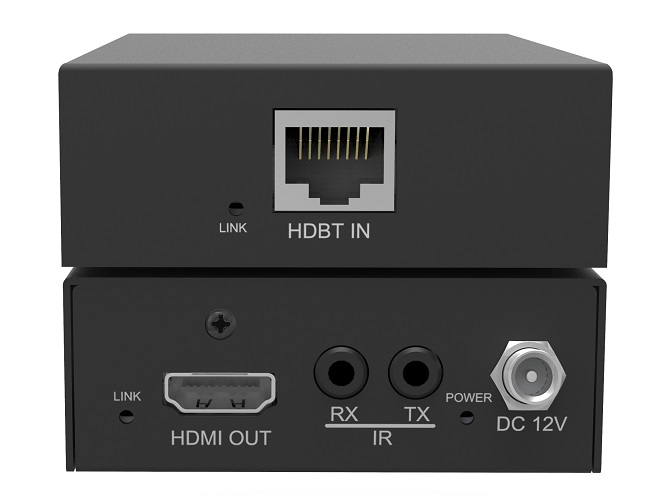

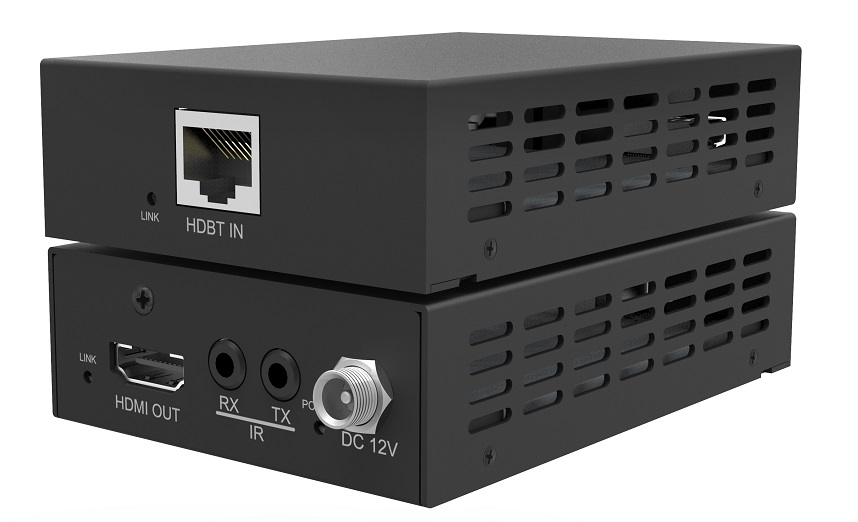

ET0101-VL1S/VL2S
- 4K@60Hz 4:2:0, full 3D
- 1080p up to 70m/230ft, 4K up to 40m/130ft
- IR pass through
- PoC supported
- HDCP 2.2 compliant
|
-

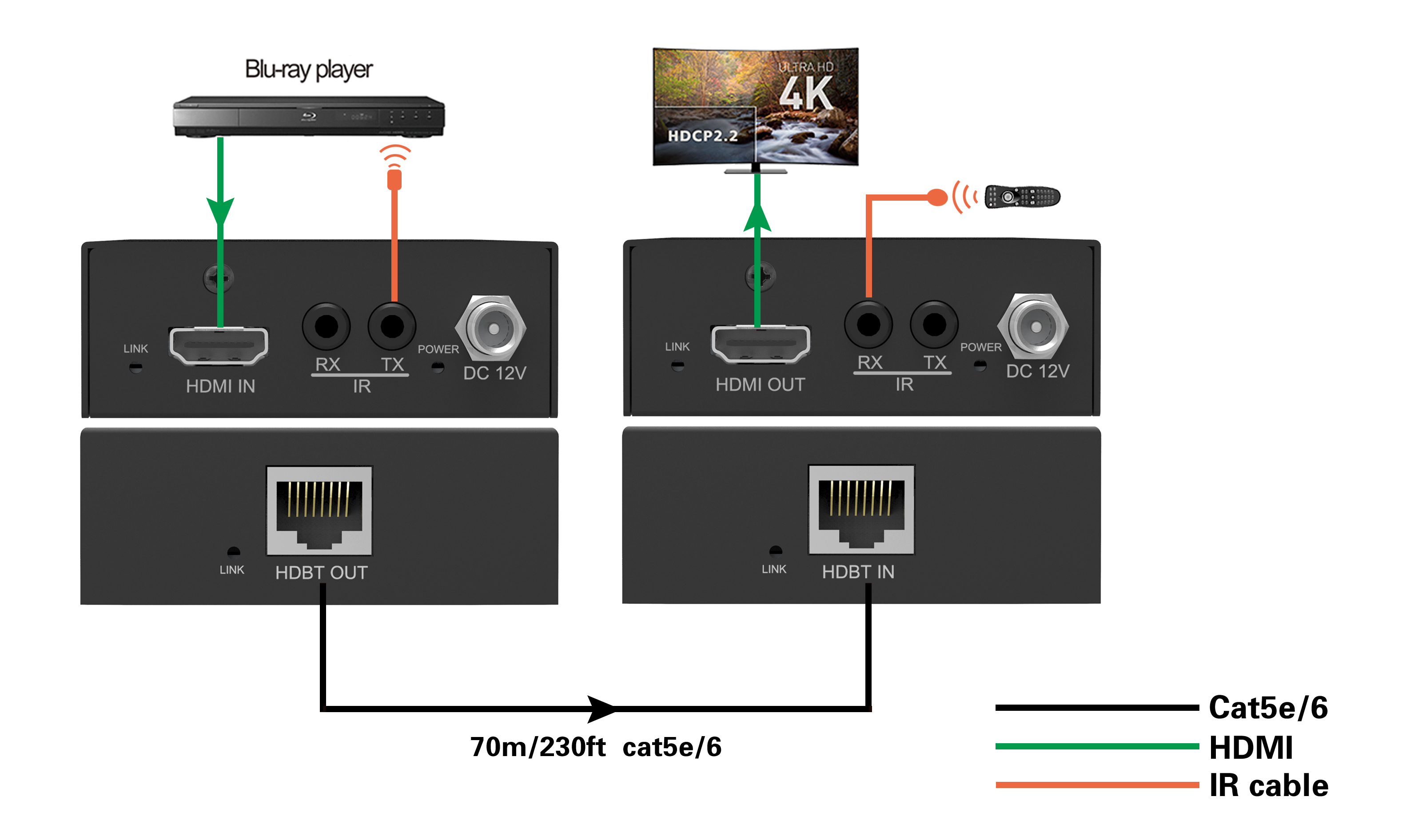

ET0101-VL1S&VL2S extends uninterrupted 1080p signal up to 230ft (70m) with the HDBaseT technology. With pass through support of 4Kx2K, 1920x1200, lossy & lossless audio, and bi-directional IR signals over a single category cable, the HD extenders provide affordable, high quality, solutions for your audio/video and IR control needs.
Features:
- Extends IR and audio/visual content up to 230ft @ 1080p over a single category cable
- Supports 4Kx2K pass through up to 130ft
- 3.5mm jack IR I/O ports for emitting and receiving IR control signals for use with IR remote controls and 3rd party control boxes
- POH(Power over HDBaseT) feature removes the need for a power supply at the receiver
- Lossy and lossless multi-channel audio formats pass through (including Dolby TrueHD and DTS-HD Master Audio)
- Full 3D pass through
- HDCP 2.2 compliant
-
ET0101-VL1S
ET0101-VL2S
Video Input Connectors:
1x HDMI Type A, 19-pin female
1x HDBaseT RJ45 connector
Video output Connectors:
1x HDBaseT RJ45 connector
1x HDMI Type A, 19-pin female, locking
IR Input ports:
1x 3.5mm stereo jack
1x 3.5mm stereo jack
IR Output ports:
1x 3.5mm mono jack
1x 3.5mm mono jack
Distance
230ft @ 1080p over CAT5e/6
130ft @ 4Kx2K over CAT5e/6
230ft @ 1080p over CAT5e/6
130ft @ 4Kx2K over CAT5e/6
Dimensions (W x H x D)
105mm x 73mm x 27mm
105mm x 73mm x 27mm
Shipping Weight:
0.3kg
0.3kg
Operating Temperature
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
-4°F to 140°F (-20°C to 60°C)
Power Supply:
12V/2A DC, Screw Connector
12V/2A DC, Screw Connector
-
