Product details

DA0101-CPC

• HDCP 2.2 to HDCP1.4 fixer
• 1 HDMI input and 1 HDMI output
• Analogue and digital audio breakout
• EDID management

DA0101-CPC

• HDCP 2.2 to HDCP1.4 fixer
• 1 HDMI input and 1 HDMI output
• Analogue and digital audio breakout
• EDID management

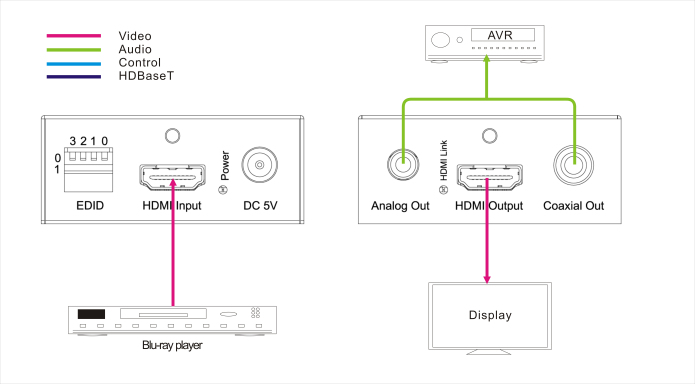

  • The HDCP 2.2 converter and audio extractor and can work with HDCP 2.2 source and extract the audio via Coaxial and stereo outputs from HDMI source. It also features embedded pre-set EDID’s as testing device in the video signal chain.
    Buy hot-selling Cheap Breitling Replica Watches uk in discount from online store. Fast shipping. Money back guaranty.

    Functional exact Swiss Replica Rolex Watches UK on amazon with high quality for men - Rolex, TAG Heuer and Breitling.

    Features

    • HDCP2.2 compatible.
    • Extract audio from the HDMI video
    • Provides both digital and analog audio outputs
    • Support 3D Video & 4K

  • • Bandwidth：2.97Gbps per color

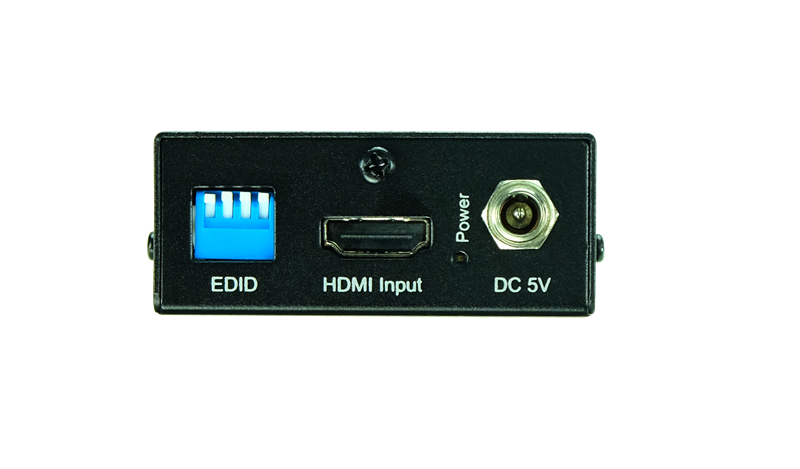

    • Video Input Connectors: 1x HDMI Type A, 19-pin, female
    • Video Output Connectors: 1x HDMI Type A, 19-pin, female
    • Audio Output Connectors: 1x RCA ( coaxial), 1x 3.5mm stereo jack
    • EDID: 1x4-pin DIP switch
    • Rack-Mountable: rack ears included
    • Dimensions (W x H x D): 83mm x60mm x 22mm , without feet
    • Shipping Weight: 0.3kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
    • Power Supply: 1x5V/1A DC
