Product details

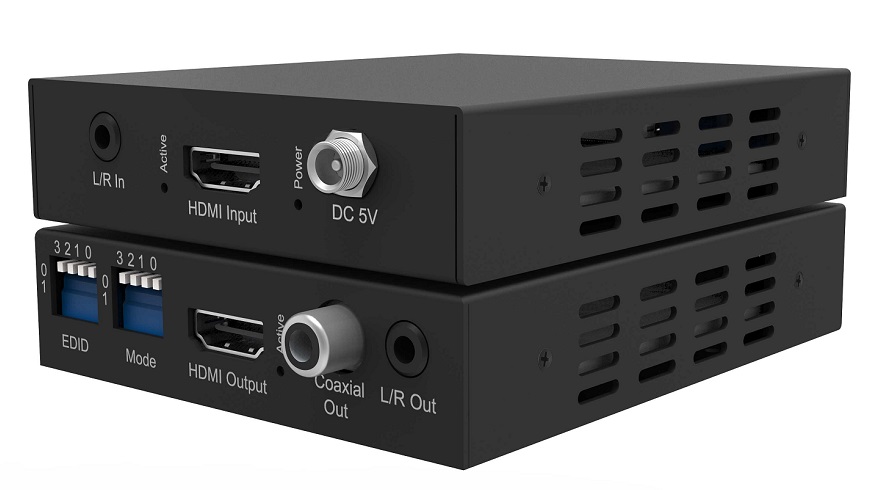

DA0101-NA1

  • Supports 3D, 4K@60Hz 4:4:4 (18Gbps)
  • HDCP 2.2/HDCP 1.x and DVI compliant
  • Extracts audio from the HDMI source (HDMI Input).
  • Extracts audio with or without an actual display connected
  • Provides both digital and analog audio outputs
  • Can remove the audio from the HDMI input signal and embed auxiliary stereo audio to HDMI output signal

DA0101-NA1

  • Supports 3D, 4K@60Hz 4:4:4 (18Gbps)
  • HDCP 2.2/HDCP 1.x and DVI compliant
  • Extracts audio from the HDMI source (HDMI Input).
  • Extracts audio with or without an actual display connected
  • Provides both digital and analog audio outputs
  • Can remove the audio from the HDMI input signal and embed auxiliary stereo audio to HDMI output signal

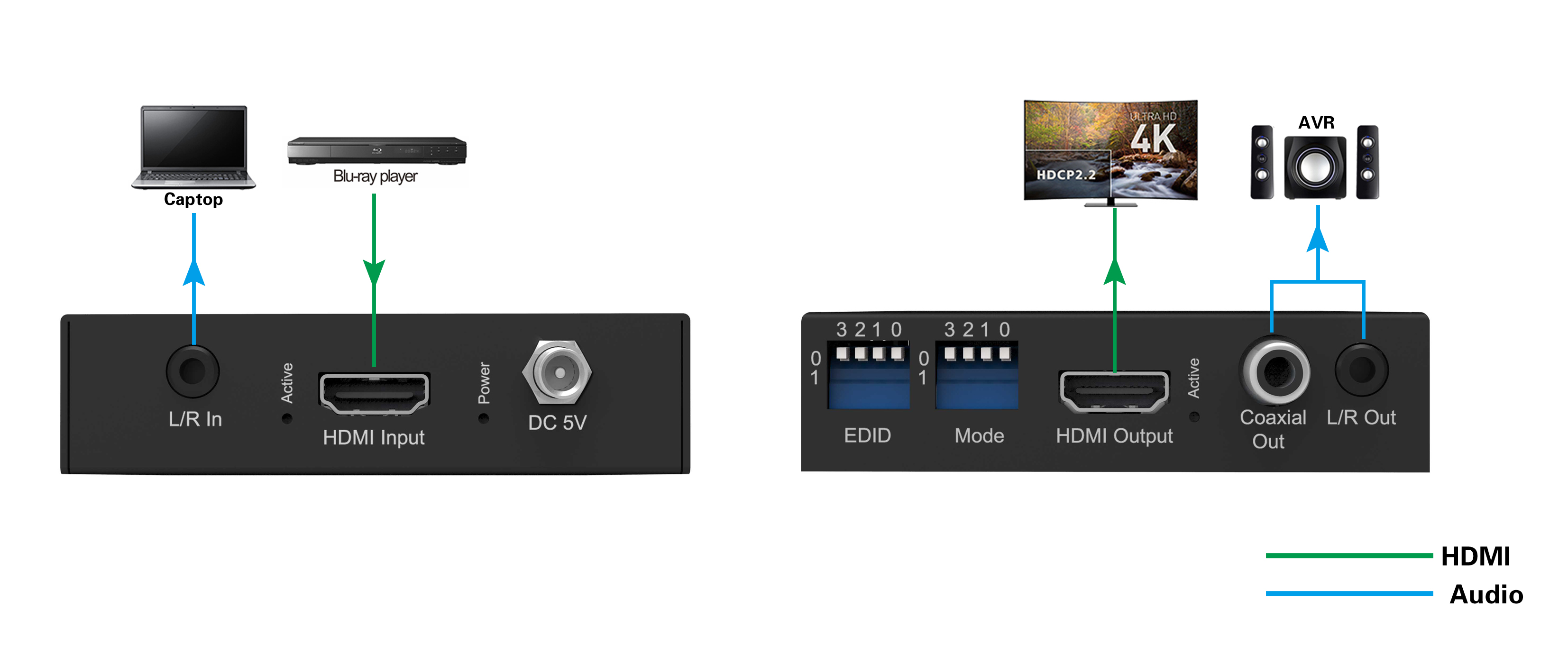

  • The DA0101-NA1 HDMI 2.0 Audio Extractor and Embedder can work in two modes, one mode for extracting the audio via Coaxial and Stereo outputs from HDMI source, and the other mode for removing the original audio of HDMI source and embedding auxiliary audio via L/R input to the HDMI output. It also features embedded pre-set EDID’s as testing device in the video signal chain.


    Features:

    • Supports 3D, 4K@60Hz 4:4:4 (18Gbps)
    • HDCP 2.2/HDCP 1.x and DVI compliant
    • Extracts audio from the HDMI source (HDMI Input).
    • Extracts audio with or without an actual display connected
    • Provides both digital and analog audio outputs
    • Can remove the audio from the HDMI input signal and embed auxiliary stereo audio to HDMI output signal


  • Bandwidth

    18Gbps

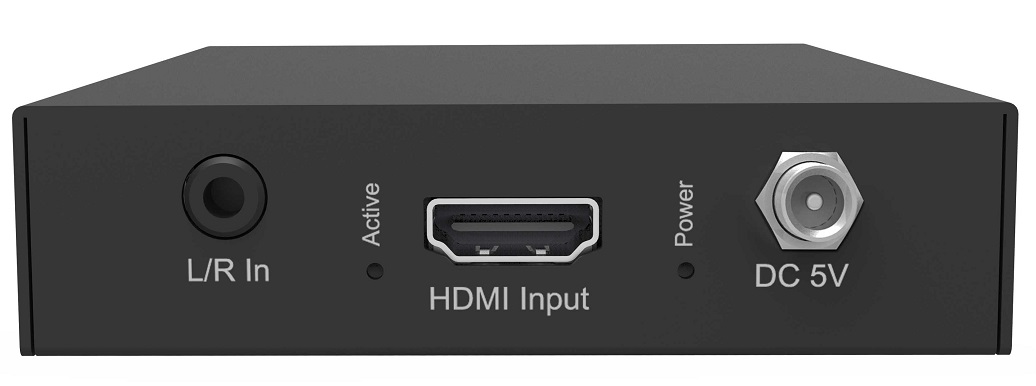

    Video Input Connectors

    1x HDMI Type A, 19-pin, female

    Audio Input Connectors

    1x 3.5mm stereo jack (L/R)

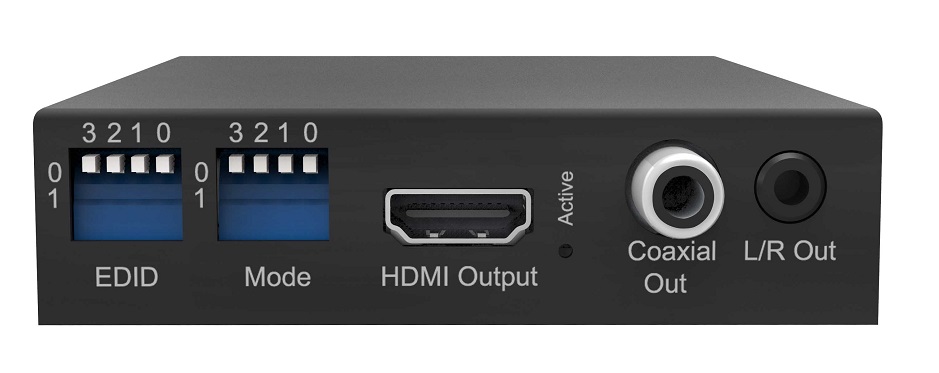

    Video Output Connectors

    1x HDMI Type A, 19-pin, female

    Audio Output Connectors

    1x RCA(S/PDIF), 1x 3.5mm stereo jack (L/R)

    EDID

    4-PIN DIP Switcher

    Mode

    4-PIN DIP Switcher

    Dimensions(W x D x H)

    140mm x 84mm x 22mm, without feet

    Shipping Weight

    0.3KG

    Operating Temperature

    32°F to 104°F (0°C to 40°C)

    Storage Temperature

    - 4°F to 140°F (- 20°C to 60°C)

    Power Supply

    5V/1A DC
