Product details

DA0104-AU1

• 4K 1x4 HDMI siplitter
• Analogue and digital audio breakout
• EDID management
• Compact design
• Plug and play

DA0104-AU1

• 4K 1x4 HDMI siplitter
• Analogue and digital audio breakout
• EDID management
• Compact design
• Plug and play

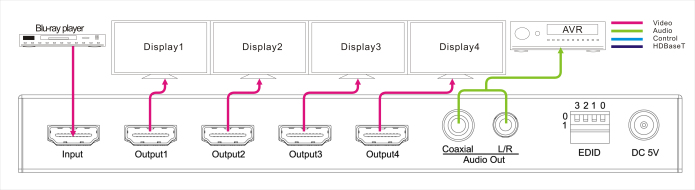

  • The DA0104-AUI HDMI 1×4 distribution amplifier splits a single DVI or HDMI audio/video source for display on four identical outputs, supporting 1080p Full HD up to 4K@30Hz UHD plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Embedded audio extractors can extract the audio and output via L/R and Coaxial.

    Features:

    • Supports resolutions up to 1080p@60Hz, 4K@30Hz, 36-bit deep color
    • Splits an HDMI source to 4 outputs without loss
    • Extract the audio from HDMI source via analog and digital outputs.
    • Dolby TrueHD and DTS-HD master audio pass through HDMI output
    • Advanced EDID management for rapid integration of sources and displays

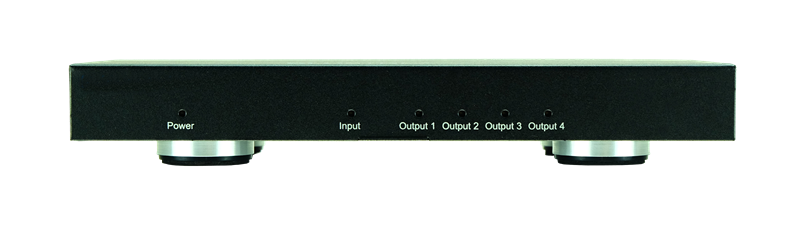

    • LEDs for power-on and outputs indication.
    • Easy installation with rack-mounting ears
    • Small compact size
    • Full 3D pass- through.
    • HDCP1.4 compliant

  • • Bandwidth:2.97Gbps per color
    • Video Input Connectors: 1x HDMI Type A, 19-pin, female
    • Video Output Connectors: 4x HDMI Type A, 19-pin, female
    • Audio Output Connectors: 1x RCA ( coaxial), 1x 3.5mm stereo jack
    • EDID: 1x4-pin DIP switch
    • Rack-Mountable: rack ears included
    • Dimensions (W x H x D): 196mm x80mm x 22mm , without feet
    • Shipping Weight: 0.4kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
    • Power Supply: 1x5V/1A DC
