Product details

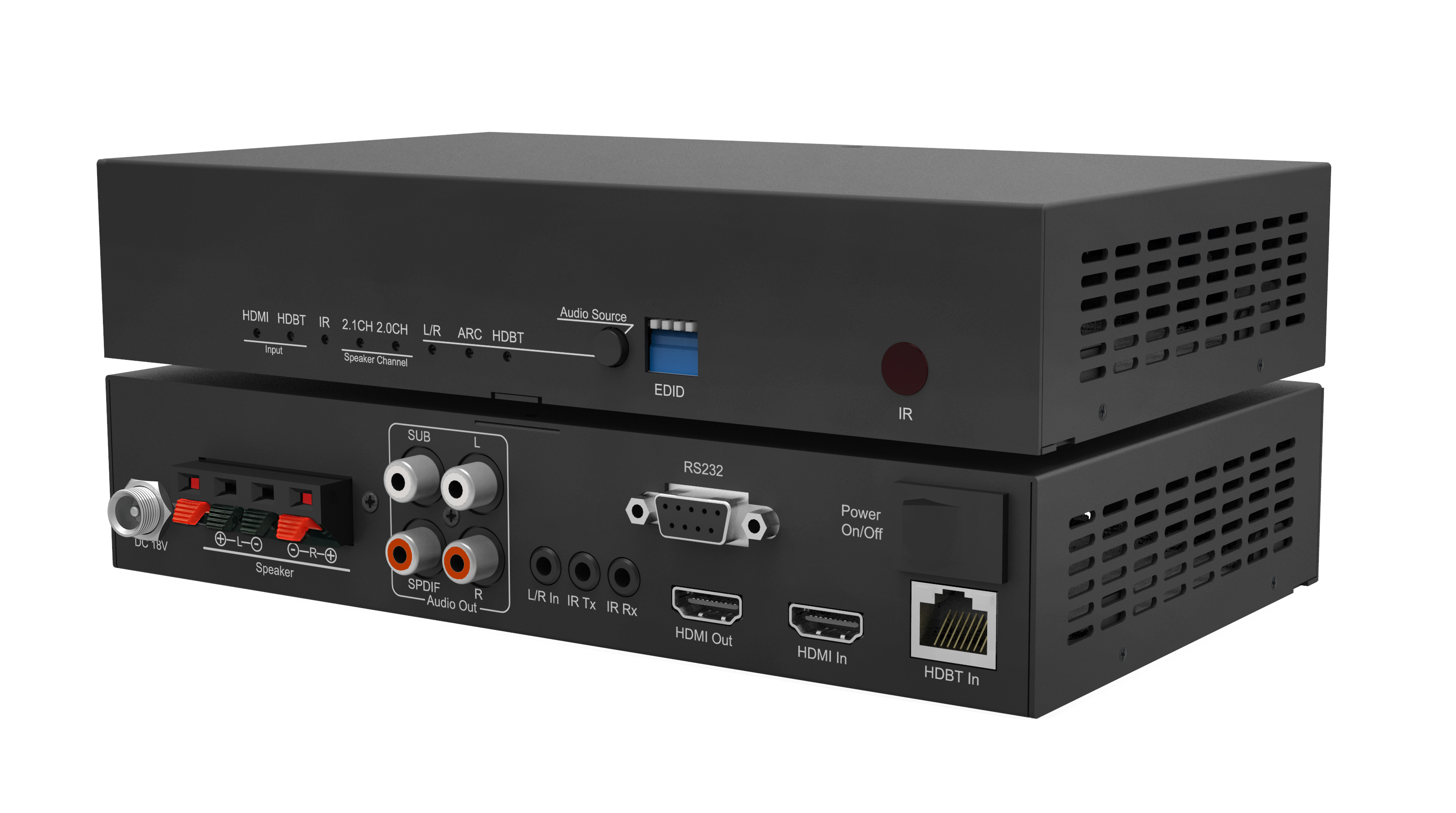

ET0201-VAR

  • Receiver and Amplifier in one
  • 4K@30Hz 4:4:4, full 3D
  • 3x1 adio awitcher
  • 70m/230ft transmitter distance
  • Analog subwoofer output, SPDIF loop out
  • IR and RS232 control
  • EDID management

ET0201-VAR

  • Receiver and Amplifier in one
  • 4K@30Hz 4:4:4, full 3D
  • 3x1 adio awitcher
  • 70m/230ft transmitter distance
  • Analog subwoofer output, SPDIF loop out
  • IR and RS232 control
  • EDID management

  • The ET0201-VAR, with HDBaseT chipset inside, is a combination of HDBaseT receiver, 2x1 switcher, and Class D digital audio amplifier. It also supports the Audio Retrun Channel of HDMI v1.4. Multiple control modes, bi-directional IR, RS232 and press button, are useful for the audio-visual integration.


    Features:

    • Multiple functions with HDBaseT receiver, and Class D Amplifier in one compact box.
    • 3:1 Audio Switcher/Receiver – Audio from centralized source via HDBaseT Transmitter, Audio Return Channel (ARC) or local L/R source.
    • 70m/230ft transmission distance between device and ET0201-VAR
    • 2.1 stereo audio at 30w per channel - amplifier capability to drive 4, 6 & 8 Ohm speaker loads.
    • High quality preamplifier adjustment for tone/volume/sub/mute control.
    • Variable Analog line level outputs.
    • Analog (RCA) Subwoofer output.
    • S/PDIF loop out.
    • Stereo speaker amplified outputs with left/right spring terminal connections.
    • Bidirectional control of source and display via IR or RS232
    • EDID management and pre-sets via DIP switch.
    • HDMI v1.4 features supported.
    • HDCP compliant.
    • Internal ESD protection.
    • Compact size for flexible integration location.
    • Mounting brackets supplied.

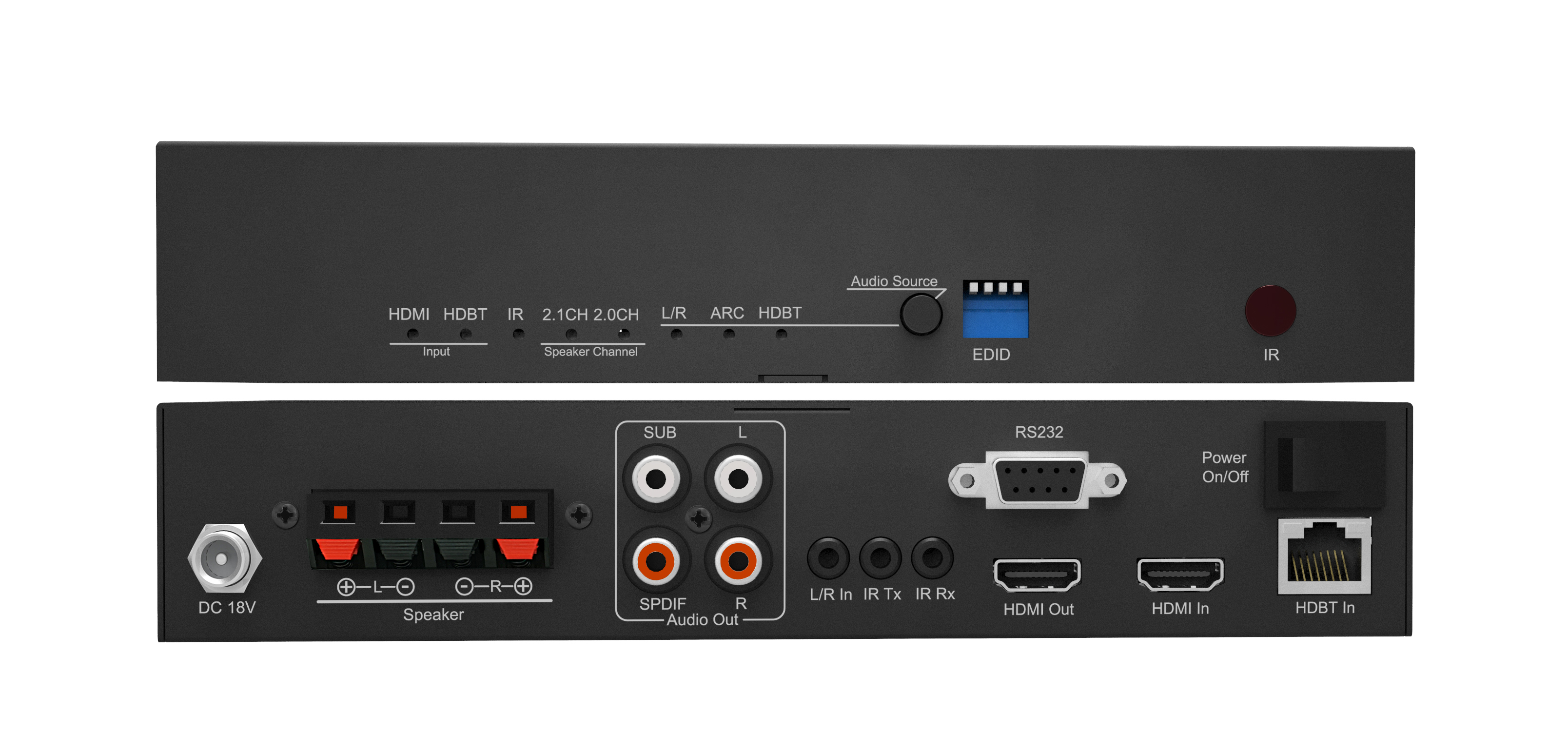

  • Video Input Connectors:

    1x RJ-45 connector, 1x HDMI Type A, female

    Video Output Connectors:

    1x HDMI Type A, female

    Audio Output Connectors:

    1x RCA(SPDIF), 1x RCA (subwoofer), 1x 4-pin spring terminal connector, 2x RCA (L/R)

    DIP switch

    4-pin

    RS-232 serial ports:

    DB-9, female

    IR Input ports

    1x 3.5mm stereo jack

    IR Output ports

    1x 3.5mm mono jack

    Dimensions (W x H x D)

    428mm x 145mm x 43mm, without feet

    Shipping Weight:

    2.7kg

    Operating Temperature

    32°F to 104°F (0°C to 40°C)

    Storage Temperature :

    -4°F to 140°F (-20°C to 60°C)

    Power Supply:

    18V/4A DC, Screw Connector
