Product details

MT0602-A40

• 6 HDMI inputs and 2 HDMI outputs matrix switcher
• Digital and analogue audio break out
• RS232 and TCP/IP control
• EDID management

MT0602-A40

• 6 HDMI inputs and 2 HDMI outputs matrix switcher
• Digital and analogue audio break out
• RS232 and TCP/IP control
• EDID management

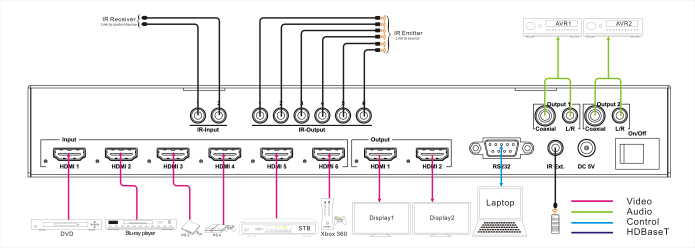

  • The MT0602-A40 6×4 Matrix with audio extractors for HDMI routes six Hi-Def sources to any two HDTV displays, supporting 1080p Full HD up to 4K plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Each source can be routed to any display using the front-panel push buttons, IR remote control, and RS-232 interface.

    Features:

    • Supports resolutions up to 1080p@60HZ,48-bit deep color, 4k@30HZ
    • Allows any source to be displayed on multiple displays at the same time
    • Allows any HDMI display to view any HDMI source at any time
    • Dolby TrueHD and DTS-HD master audio pass through HDMI output
    • Advanced EDID management for rapid integration of sources and displays
    • Multiple switching mode, push-in button, IR remote control, RS-232 control
    • Easy installation with mounting ears
    • Full 3D pass through.
    • HDCP compliant

  • • Bandwidth:6.75Gbps
    • Video Input Connectors: 6x HDMI Type A, 19-pin, female, locking
    • Video Output Connectors: 2x HDMI Type A, 19-pin, female, locking
    • Audio Output Connectors:2x RCA ,female,2x 3.5mm stereo jack
    • RS-232 serial port: DB-9, female
    • IR Input ports: 2x 3.5mm stereo jack
    • IR Output ports: 6x 3.5mm stereo jack
    • Rack-Mountable: Mounting ears included
    • Dimensions (W x H x D): 260mm x 105mm x 39mm , without feet
    • Shipping Weight: 1.0kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
    • Power Supply: 5V/2A DC
