Product details
MT0808-140
- 8x HDMI input, 8x HDMI output
- 4K@60Hz 4:2:0, full 3D
- Push button, IR, RS-232, TCP/IP and Web GUI for control
- EDID management
- HDCP 1.4 compliant
|
-

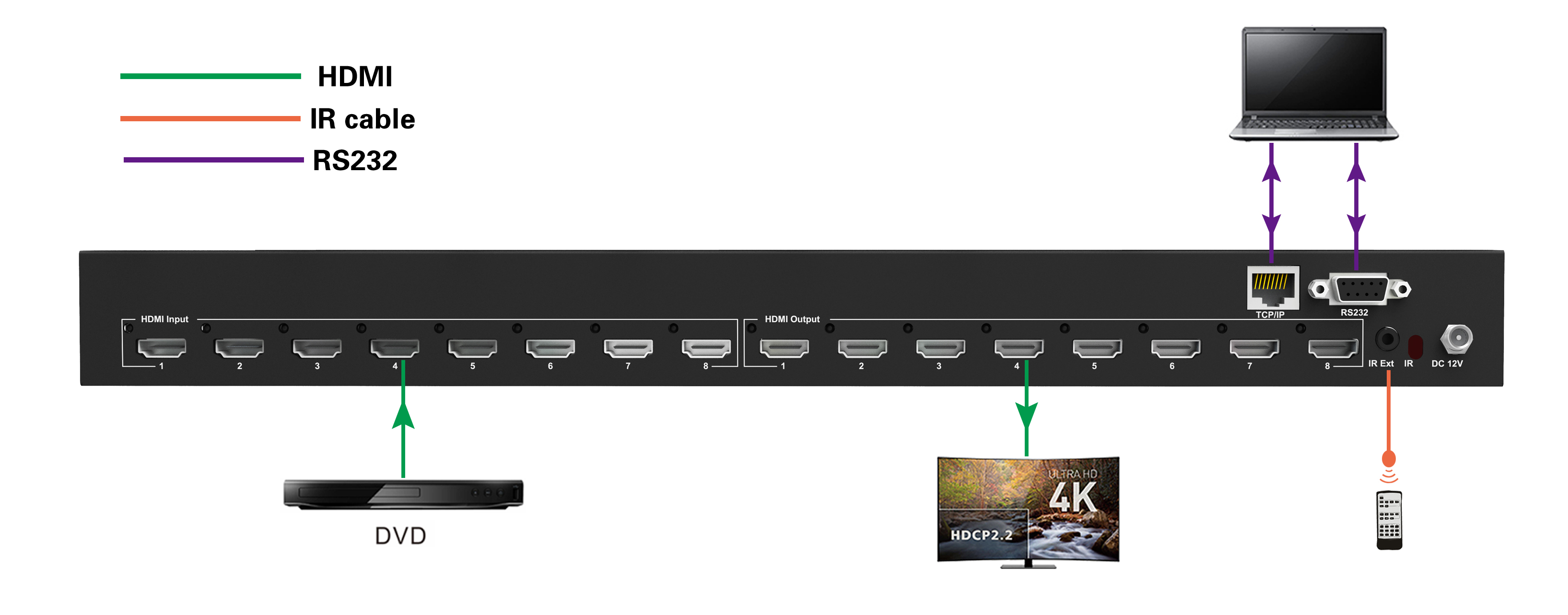

The MT0808-140 8×8 Matrix with audio extractors for HDMI routes eight Hi-Def sources to any eight HDTV displays, supporting 1080p Full HD up to 4K plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Each source can be routed to any display using the front-panel push buttons, IR remote control, RS-232 interface, or via TCP/IP.
Features:
- Supports resolutions up to 1080p@60Hz,48-bit deep color, 4k@30Hz
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI display to view any HDMI source at any time
- Dolby TrueHD and DTS-HD master audio pass through HDMI output
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Multiple switching mode, push-in button, IR remote control, RS-232 control, and TCP/IP control
- Easy installation with rack-mounting ears
- Full 3D pass through.
- HDCP compliant
-
Bandwidth
2.97Gbps per color
Video Input Connectors:
8x HDMI Type A, 19-pin, female, locking
Video output Connectors:
8x HDMI Type A, 19-pin, female, locking
RS-232 serial ports:
DB-9, female
TCP/IP Control
RJ-45, female
IR Input ports
1x 3.5mm stereo jack
Dimensions (W x H x D)
428mm x 245mm x 43mm, without feet
Shipping Weight:
2.7kg
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
Power Supply:
12V/5A DC, Screw Connector
-
