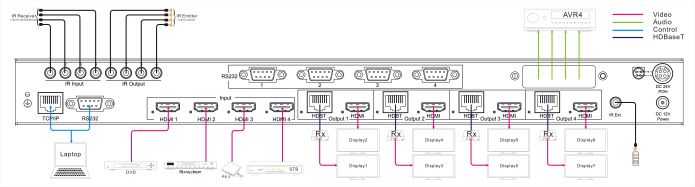

The MT0404-VL5 HDBaseT 4×4 Matrix for HDMI routes four Hi-Def sources to any four HDTV displays, supporting 1080p Full HD up to 4K@30Hz UHD plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Embedded audio extractors can extract the audio and output via L/R or Coaxial. Based on HDBaseT Lite chipset inside, the output distance can reach up to 70m via Cat5e/Cat6. Each source can be routed to any display using the front-panel push buttons, IR remote control, RS-232 interface, or via TCP/IP.

Features:
• Supports resolutions up to 1080p@60Hz, 4K@30Hz, 36-bit deep color
• HDBaseT Lite chipset inside for the output distance up to 70m.
• Matrix can power the remote receivers, with POH, no power supply needed for the receivers.
• Allows any source to be displayed on multiple displays at the same time
• Allows any HDMI display to view any HDMI source at any time
• Dolby TrueHD and DTS-HD master audio pass through HDMI output
• Advanced EDID management for rapid integration of sources and displays
• Front-panel LCD display for status feedback
• Multiple switching mode, push-in button, IR remote control, RS-232 control, and TCP/IP control
• Easy installation with rack-mounting ears
• Full 3D pass- through.
• HDCP compliant
