Product details

CV0702-HDS

  • 4K@30Hz 4:4:4, full 3D
  • Switch & Scale 7 sources to 2 display
  • 1x VGA,4x HDMI, 1xYPbPr, 1x AV for input, and 2x HDMI for output
  • Splitter and Dual Switcher modes selectable
  • Bypass and scaled formatted output selectable
  • Audio embedding and de-embedding
  • Scaling from 640x480 to 1920x1080@60Hz
  • HDCP 1.4 compliant

CV0702-HDS

  • 4K@30Hz 4:4:4, full 3D
  • Switch & Scale 7 sources to 2 display
  • 1x VGA,4x HDMI, 1xYPbPr, 1x AV for input, and 2x HDMI for output
  • Splitter and Dual Switcher modes selectable
  • Bypass and scaled formatted output selectable
  • Audio embedding and de-embedding
  • Scaling from 640x480 to 1920x1080@60Hz
  • HDCP 1.4 compliant

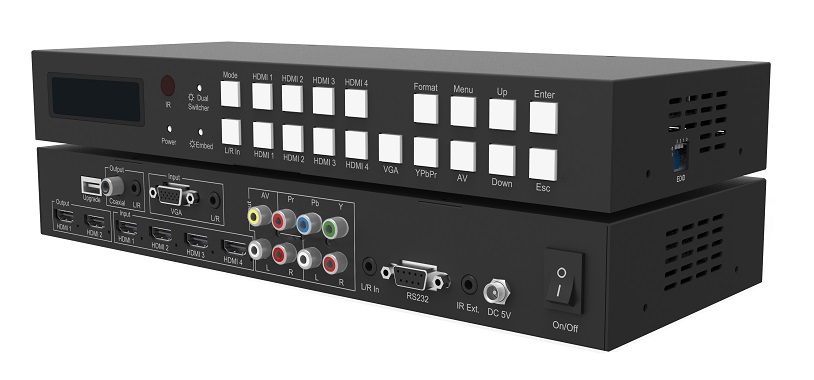

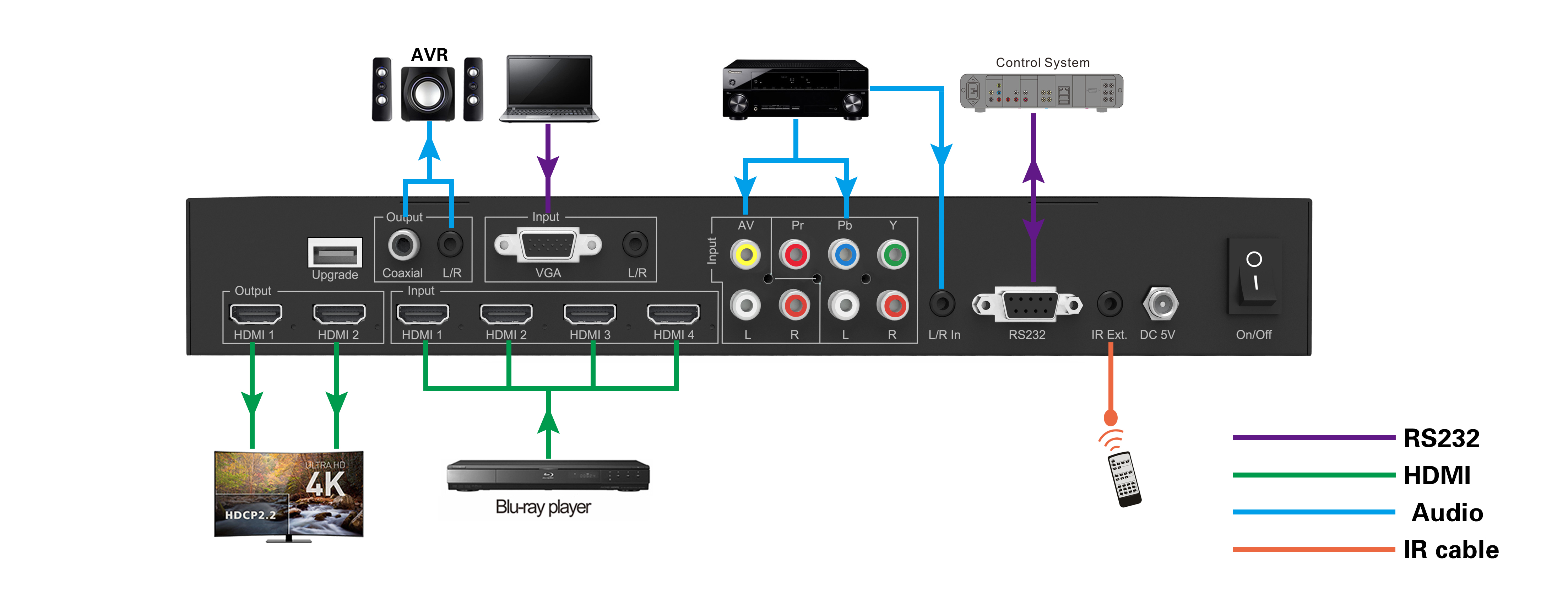

  • The CV0702-HDS is a HDMI,VGA, Component and Composite presentation switcher. Embedded splitter and dual switcher modes, it can work as 7:1x2 multiple splitter and 4x1 &7x1 dual switcher. This presentation switcher also features a switchable digital bypass output allowing any HDMI input to be directly bypassed via that HDMI output to cater for the 4K source. With advanced audio embedding and de-embedding, it can provide flexible audio signal integration. Each source can be switched to the HDMI output using the front-panel push buttons, IR remote control or RS-232 interface.


    Features:

    • 4K@30Hz 4:4:4, full 3D
    • Switch & Scale 7 sources to 2 display
    • 1x VGA,4x HDMI, 1xYPbPr, 1x AV for input, and 2x HDMI for output
    • Splitter and Dual Switcher modes selectable
    • Bypass and scaled formatted output selectable
    • Audio embedding and de-embedding
    • Scaling from 640x480 to 1920x1080@60Hz
    • Front-panel LCD display for status feedback
    • Multiple switching mode, push-in button, IR remote control, RS-232 control, and TCP/IP control
    • Easy installation with rack-mounting ears
    • HDCP 1.4 compliant







  • Bandwidth：

    10.2Gbps

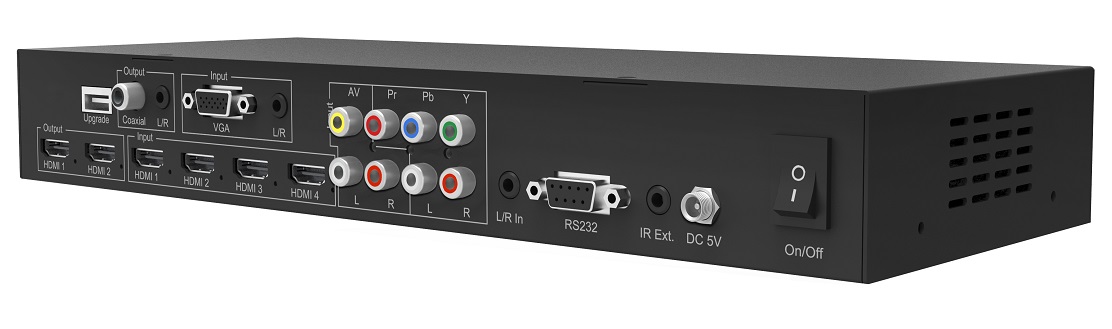

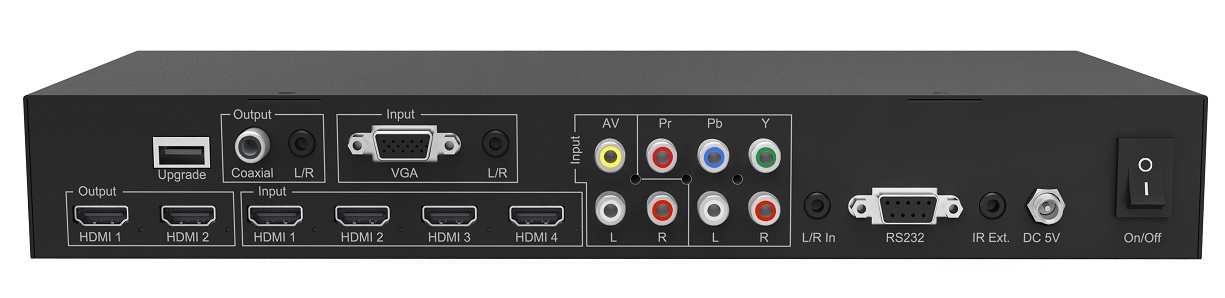

    Video Input Connectors:

    4x HDMI Type A, 1x VGA, 1xYPbPr,1x AV

    Video Output Connectors:

    2x HDMI Type A

    Audio Input Connectors:

    2x 3.5mm stereo jack, 4x RCA (2 x L/R)

    Audio Output Connectors:

    1x 3.5mm stereo jack,1x RCA (SPDIF)

    RS-232 serial port:

    1x DB 9 connector

    IR Input ports:

    1x 3.5mm stereo jack

    Dimensions (W x H x D):

    323mm x 135mm x 44mm , without feet

    Shipping Weight:

    1.2Kg

    Operating Temperature:

    32°F to 104°F (0°C to 40°C)

    Storage Temperature :

    -4°F to 140°F (-20°C to 60°C)

    Power Supply:

    DC 5V/2A
