Product details

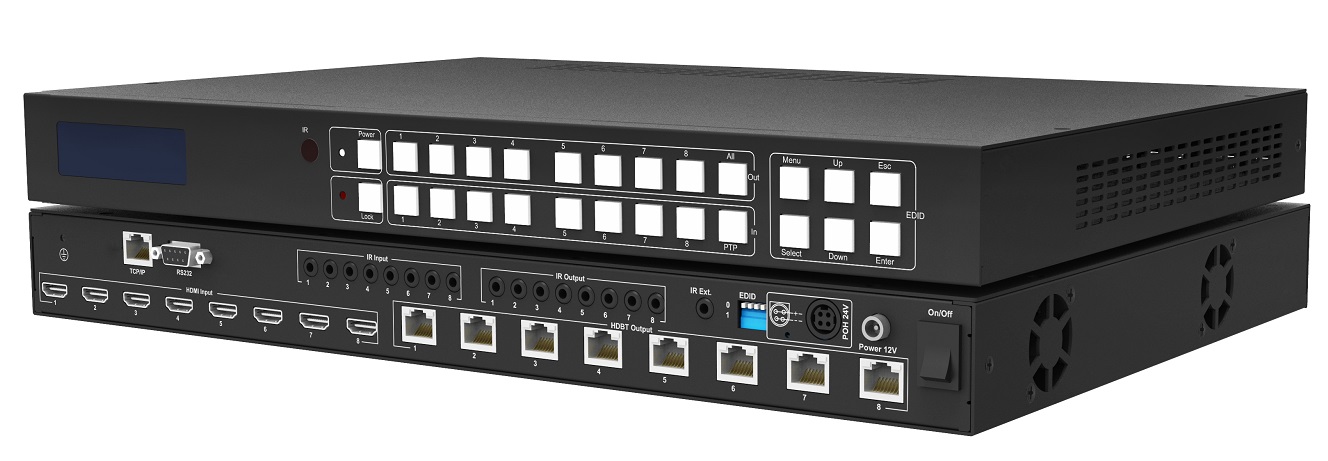

MT0808-VF2
- 19inch 1U design
- 4K@60Hz 4:2:0, HDR and full 3D
- 8x HDMI input, 8x HDBaseT output
- 1080p up to 100m/330ft, 4K up to 70m/230ft
- LCD panel, IR, RS232, TCP/IP and Web GUI for control
- PoC supported
- EDID management
- HDCP 1.4 compliant





-
The MT0808-VF2 HDBaseT 8×8 Matrix for HDMI routes four Hi-Def sources to any four HDTV displays, supporting 1080p Full HD up to 4K plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Based on HDBaseT chipset inside, the output distance can reach up to 100m via Cat5e/Cat6. Each source can be routed to any display using the front-panel push buttons, IR remote control, RS-232 interface, or via TCP/IP.
If you like forever classic fake watches, you cannot miss the uk top quality cheap replica rolex watches canada.
What kinds of perfect replica watches are worth having? US 1:1 Best Replica Watches Sales with Real Swiss Movement.
Features:
- Supports resolutions up to 1080p@60HZ,48-bit deep color, 4k@30HZ
- HDBaseT chipset inside for the output distance up to 100m.
- Matrix can power the remote receiver, POE, no power supply needed for the receivers.
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI display to view any HDMI source at any time
- Dolby TrueHD and DTS-HD master audio pass through HDMI output
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Multiple switching mode, push-in button, IR remote control, RS-232 control, and TCP/IP control
- Easy installation with rack-mounting ears
- Full 3D pass- through.
- HDCP compliant
-
Bandwidth
2.97 Gbps per color
Video Input Connectors
8x HDMI Type A, 19-pin, female, locking
Video Output Connectors
8x HDBaseT RJ45 connector,
RS232 Serial port
1x DB9 connector
TCP/IP Control
RJ45 connector, female
IR input ports
9x3.5mm stereo jack
IR output ports
8x3.5mm mono jack
Rack-Mountable
rack ears included
Dimensions(L x W x D)
428mm x 300mm x 43mm, w/o feet
Shipping Weight
2.7KG
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Power Supply
12V/6.25A DC (Main), 24V/6.25A DC (POH)
-
