Product details
ET0101-SE3/SE4A
- 1080p@60Hz, full 3D
- 1080p up to 50m/164ft
- Audio breakouts at RX side
- Wideband IR 30-50KHz
- EDID management
- HDCP 1.4 compliant
- Ultra slim design
|
-

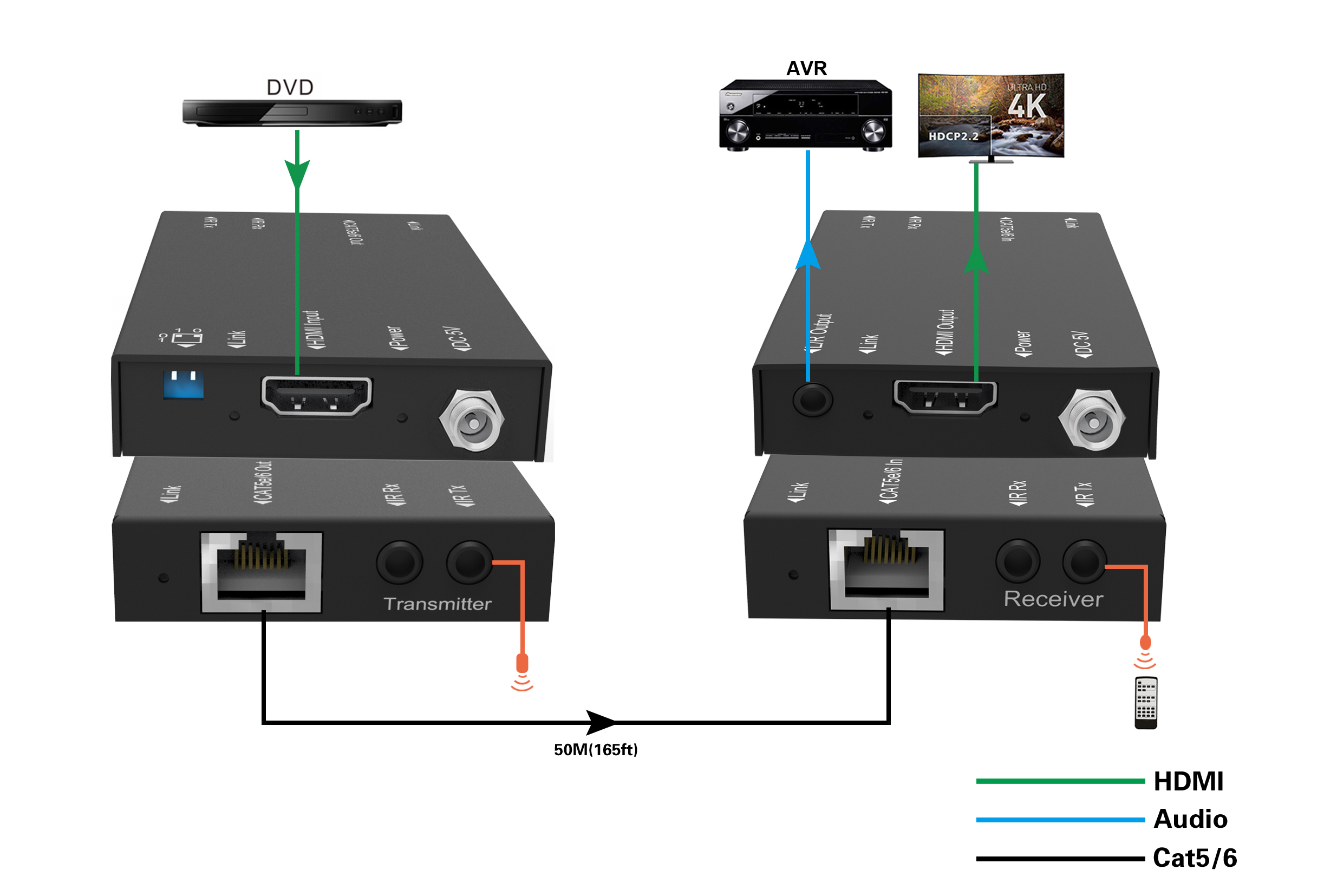

The ET0101-SE3&SE4A is a HDMI Extender designed to carry DVI/ HDMI signals over distances beyond the capability of standard HDMI/ DVI cable. It extends video (1080p@60Hz) and audio over a single CAT5e/6 cable up to 165ft (50m) and is compliant with HDCP. In addition, the extender supports L/R audio breakout on the Receiver unit.
The disadvantage of replica watches uk is that the waiting time is too long, ranging from a week or two to more than half a year.
With low price and high quality Top 5 Trusted topreplicauk.me Sites, the replica watches ca on google are worth having!
Buy AAA Best cheap fake rolex uk - High Quality Fake Rolex Watches For Sale
Features:
- Ultra slim design, thickness 1.5cm
- Aluminum chassis, weight only 80g/unit
- Supports 1080p@60Hz, 3D
- Supports 1080P@60Hz up to 50m (165ft).
- Supports L/R audio breakout
- Supports bi-directional wideband IR (30-55KHz) control
- Supports EDID management
- HDCP 1.4 compliant
fake prada Sneaker dupe perfumes dupes perfumes dupe perfumes tom ford dupe perfumes kilian
-
ET0101-SE3
ET0101-SE4A
Bandwidth
2.65Gbps per Color
2.65Gbps per Color
Video input
1XHDMI Type A, female
1xRJ45
Video output
1xRJ45，
1XHDMI Type A, female
Distance
165ft (50m)@1080p over CAT5e/6
165ft (50m)@1080p over CAT5e/6
IR input
1x 3.5mm stereo jack
1x 3.5mm stereo jack
IR output
1x 3.5mm mono jack
1x 3.5mm mono jack
Power Supply
5V/1A DC
5V/1A DC
Power Consumption
2.5W
2.5W
Dimensions
97x57x15mm
97x57x15mm
Weight
80g
80g
Operating Temperature
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
-4°F to 140°F (-20°C to 60°C)
Rack-Mountable
Rack ears included
Rack ears included
-
