Product details
ET0102-GP1/GP2
- 4K@60Hz 4:2:0, full 3D
- 1080p up to 100m/330ft, 4K up to 90m/295ft
- Long cable mode supported. 1080p up to 150m/490ft
- 1x HDMI loop out on TX
- Audio Return Channel supported
- SPDIF (Toslink) audio pass through from RX to TX
- Audio extractor for ARC at TX side via Toslink and L/R
- Analogue & digital audio breakouts at RX side
- IR, RS-232 and Ethernet pass through
- 3x Ethernet port on RX
- PoC supported
- EDID management
- HDCP 2.2 compliant
-

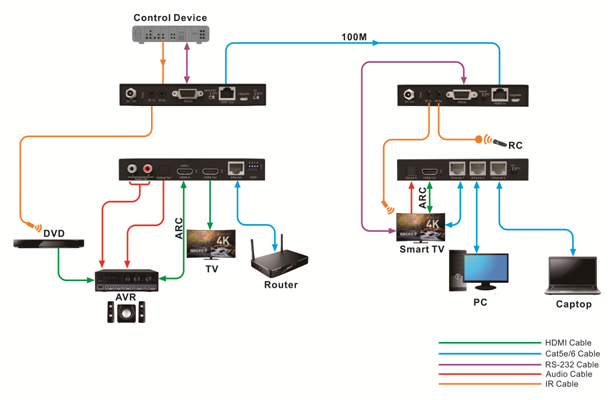

The ET0102-GP1 (TX)/ET0101-GP2 (RX) is an HDBaseT 2.0 HDMI Extender featured ARC and 4 Port Ethernet Switch. It transmits 1080p@60Hz via single Cat5e up to 100 meters and 4K@60Hz (4:2:0) to 90 meters. Bi-directional IR, RS232 and Ethernet can also be transmitted over the same Cat5e/Cat6 cable. With support of POH, only one power supply is needed at either TX or RX side. Toslink input receiver can work with legacy products for audio return to audio surround receiver. Besides, audio from ARC can also be extracted via both Toslink and L/R at TX side. The extender can also be used stand-alone as an Audio extender.
Features:
- Audio Return Channel (ARC) supported backwards Toslink input.
- Audio extractor for ARC at TX side via Toslink and L/R.
- Supports HDMI 1.4 1080p@60Hz and HDMI 2.0 4K@60Hz (4:2:0).
- HDCP 2.2/HDCP 1.X and DVI compliant
- With built-in 4 port Ethernet Switch.
- With HDMI loop out at TX unit.
- Supports 1080p@60Hz or VESA: 1920x1200@60Hz video transmission up to 100m/328ft, and 4K@60Hz (4:2:0) to 90m/295ft.
- Transmission distance for ARC up to 100m using STP (TE CONNECTIVITY 219420-2).
- Dolby TrueHD and DTS-HD master audio pass through HDMI output
- Bi-Directional IR, RS232 and Ethernet pass through.
- POH (Power over HDBaseT) supported, only one power supply needed at either Transmitter or Receiver side.
- With ESD Protection.
-

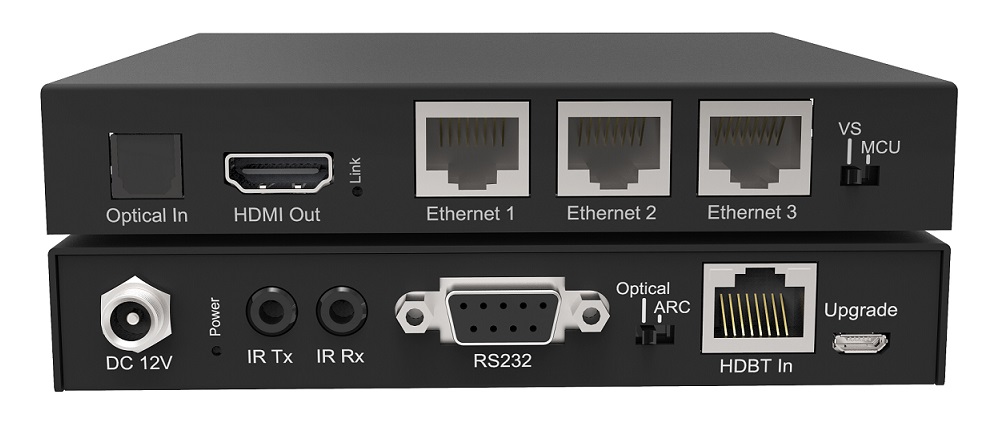

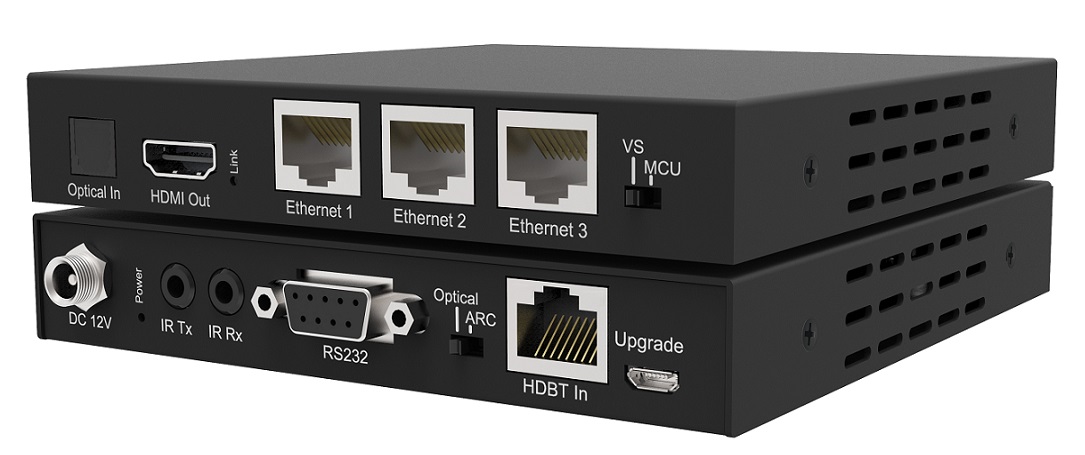

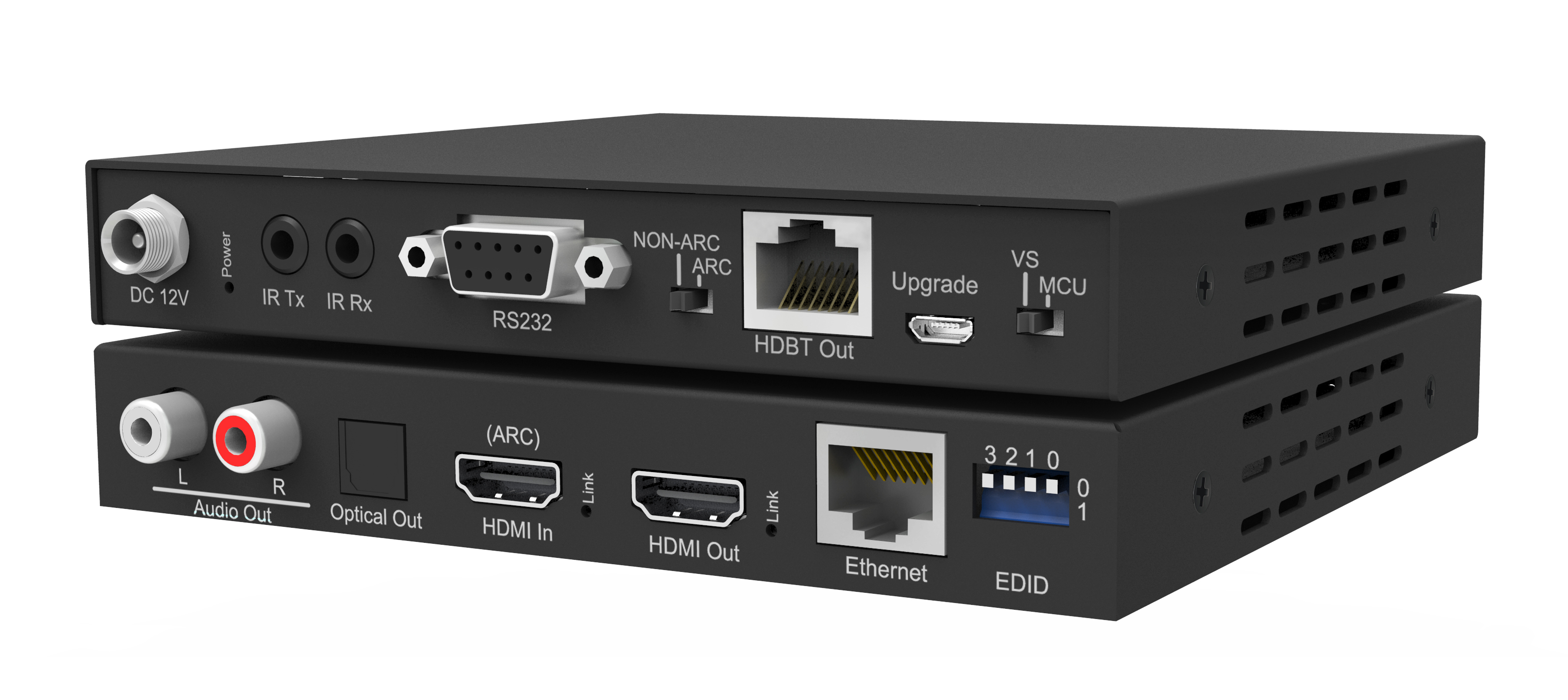

ET0102-GP1
ET0101-GP2
Bandwidth:
10.2Gbps
10.2Gbps
Video Input Connectors:
1x HDMI Type A female
1x RJ45
Video Output Connectors:
1x HDMI Type A female, 1x RJ45
1x HDMI Type A, female
Audio Output Connectors:
2x RCA (L/R), 1x Toslink (S/PDIF)
1x Toslink (S/PDIF)
Ethernet Input:
1x RJ-45
3 x RJ-45
RS-232 serial port:
1x DB9, female
1x DB9, female
IR Input ports:
1x 3.5mm stereo jack
1x 3.5mm stereo jack
IR Output ports:
1x 3.5mm mono jack
1x 3.5mm mono jack
Rack-Mountable:
2x Rack-mount ears
2x Rack-mount ears
Dimensions (W x H x D):
135mm x 143mm x 22mm , without feet
135mm x 129mm x 22mm , without feet
Shipping Weight:
508g
468g
Operating Temperature:
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
-4°F to 140°F (-20°C to 60°C)
Power Supply:
24V/1A DC, Screw Connector
24V/1A DC, Screw Connector
