AP0502-AF1
- 5 audio inputs
- 2x50W@8ohms/ 1x100W@4ohms
- With audio loop out
- Cascade with another amplifer
- Mic input supports audio mix
- Push button, IR, RS-232 and TCP/IP for control
- Over-temp protection circuit
|
|
-

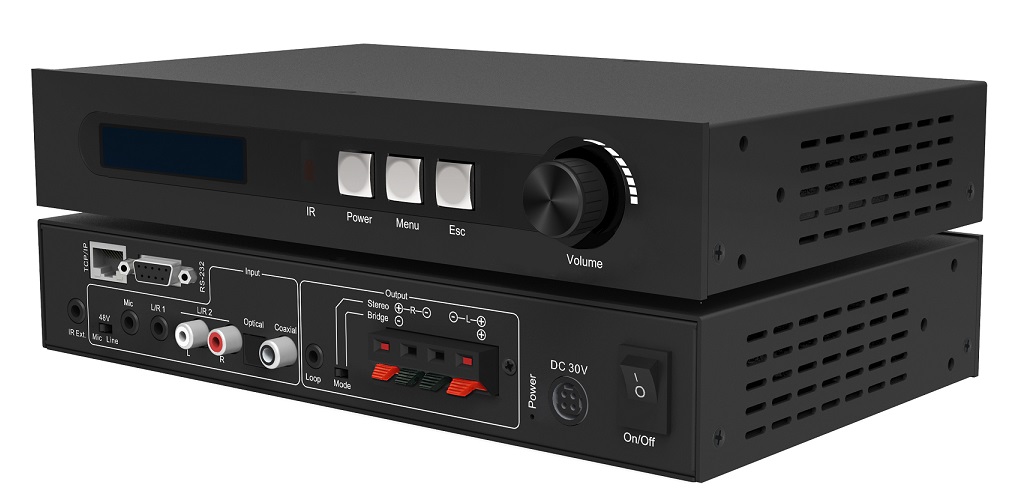

The AP0502-AF1 is a compact class-D amplifier with 5 inputs, it features switchable stereo or bridge output, and complete EQ adjustment and intuitive working status display. It integrates easily in various analog to digital applications such as when used in collaboration environments, lecture halls, conference rooms, class rooms, healthcare facilities and control centers.
Features:
- Efficient 2x50 watts of power from the Texas Instruments amp chip
- 5 audio inputs: 2x L/R Stereo, 1x Mic (Mic/48V/Line), 1x SPDIF and 1x Coaxial
- Switchable Stereo / Bridge output (2x50W@8ohms / 1x100W@4ohms)
- 6 EQ modes for choose: Normal, Pop, Classic, Metal, Jazz and Rock
- Audio loop out supports cascade with another amplifier
- Intuitive LCD screen for device status
- Mic input supports audio mix with any of the L/R, SPDIF and Coaxial input
- Multiple control modes: Push Buttons, IR, RS232 and TCP/IP
- Easy volume adjustment via a rotary knob
- Easy installation with 1U rack-mounting ears
- No fan design, no noise
- With over-temp protection circuit
- Supports audio delay up to 256ms (Optional)
-
Technical
Power output
2x50W@8ohms, 1x100W@4ohms
SNR
85dB
THD+ N
1%@1KHz 50W@8ohms, 1%@1KHz 100W@4ohms
Frequency response
100Hz to 20KHz (±3 dB)
Impedance
2-8 ohms
Input Impedance
>10KΩ
Max Input Voltage swing
5.6V
Input Channel Separation
90dB
Efficiency
90%
ESD Protection
Human body model — ±15kV (air-gap discharge) & ±8kV (contact discharge)

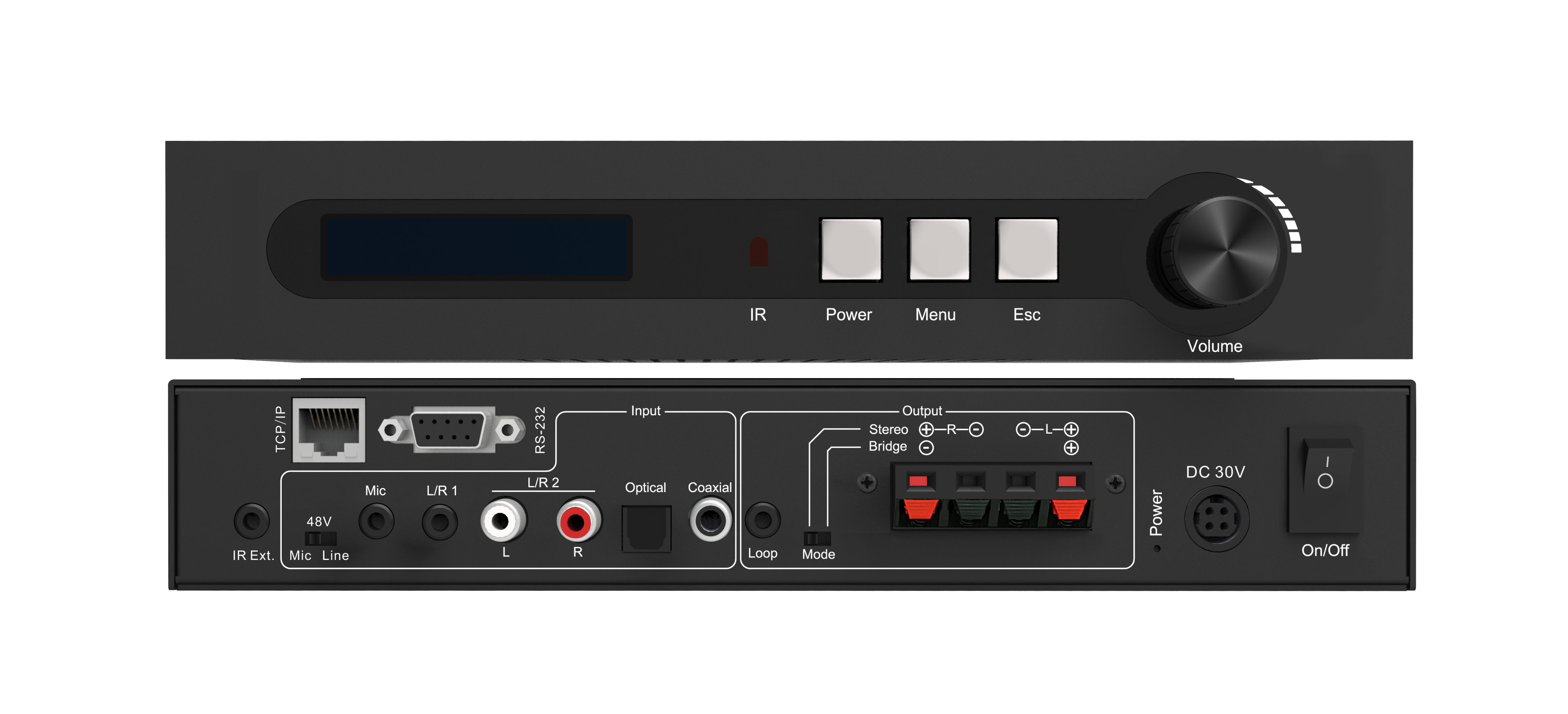

I/O
Inputs
1x IR Ext. (IR signal receiving, 3.5mm stereo earphone jack)
1x L/R (Analog audio input, 3.5mm stereo earphone jack)
2x RCA (Analog audio input, Left/Right channel)
1x MIC (Microphone input, 3.5mm stereo earphone jack)
1x Coaxial (Digital audio input, SPDIF)
1x Optical (Digital audio input, SPDIF)
1x RJ45 (IP Control / LAN Serving)
1x 9-pin D-sub (RS232 serial port)
Outputs
1x Loop (Analog audio loop out, 3.5mm stereo earphone jack)
1x 4-Way Sprint Terminal
General
Housing
Metal Enclosure
Dimensions
255mm [W] x 163mm [D] x 44mm [H] (Without the 8mm Rubber Feet)
Net Weight
1.4KG
Power Supply
Input: AC100 - 240V 50/60Hz
Output: DC 30V/5A (US/EU standards, CE/FCC/UL certified)Power Consumption (Max)
130W
Operation Temperature
-4 - 176°F / -20 - 80°C
Storage temperature
-40 - 212°F / -40 - 100°C
Relative Humidity
20 - 90% RH (no condensation)
-
