Product details

CV0102-NS1

  • 4K@60Hz 4:4:4, HDR10, HLG, DolbyVision and full 3D
  • 1 source to 2 displays
  • HDMI Output 1 downscale 4K to 1080p or 4K 60/50Hz 4:4:4 to 4K 60/50Hz 4:2:0
  • HDMI Output 2 bypass original input signal
  • L/R embedding for HDMI input
  • Analogue & digital audio de-embedding from output
  • EDID management
  • HDCP 2.2 compliant
Repliques De Sacs De Marque Louis Vuitton Repliques De Sacs

CV0102-NS1

  • 4K@60Hz 4:4:4, HDR10, HLG, DolbyVision and full 3D
  • 1 source to 2 displays
  • HDMI Output 1 downscale 4K to 1080p or 4K 60/50Hz 4:4:4 to 4K 60/50Hz 4:2:0
  • HDMI Output 2 bypass original input signal
  • L/R embedding for HDMI input
  • Analogue & digital audio de-embedding from output
  • EDID management
  • HDCP 2.2 compliant
Repliques De Sacs De Marque Louis Vuitton Repliques De Sacs

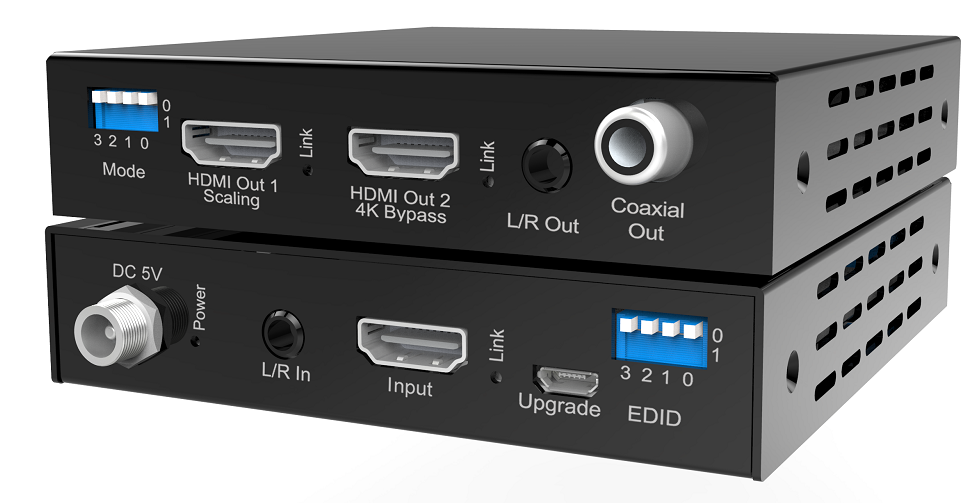

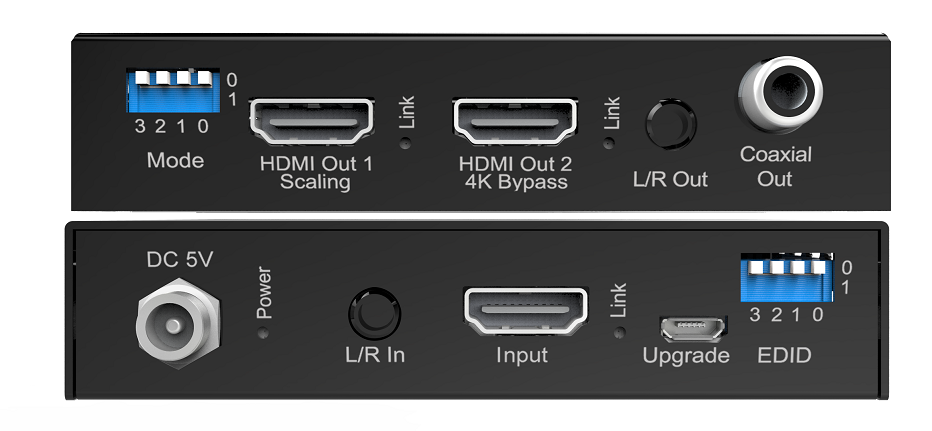

  • The CV0102-NS1 is a 4K/18G HDMI splitter with in-built scaler, designed for installations in which a single 4K video to source needs to be distributed to multiple displays that support different maximum video resolution. The CV0102-NS1 supports down-scaling of 4K video to a fixed resolution of 1080p or to a lower color gamut if the screen does not support 4K (4:4:4). It also includes audio embedding and de-embedding, advanced EDID management and supports HDCP 2.2 compliant.
    You cannot miss top replica watches uk online with Swiss movements! Place an order online quickly!
    What are the uk Swiss made fake watches review? 1:1 fake Rolex, Omega and Cartier cartier replica must be mentioned. You can order your best fake watches online.


    Features:



    • 1x HDMI input to 2x HDMI outputs
    • Supports resolution up to 4K@60Hz 4:4:4, HDR and full 3D formats
    • HDMI output 1 supports to down-scale the video to the following formats:
    - 1080P@24/25/30/60Hz (for screens that do not support 4K)
    - 4K@50/60Hz 4:2:0 (for screens that do not support full 4K@60Hz 4:4:4)
    • HDMI output 2 supports 4K video bypass output
    • Audio de-embedding and em-bedding
    • Advanced EDID management
    • HDCP 2.2 compliant
    • Slim design





  • Bandwidth

    18Gbps

    Video Input Connectors %0
