Product details

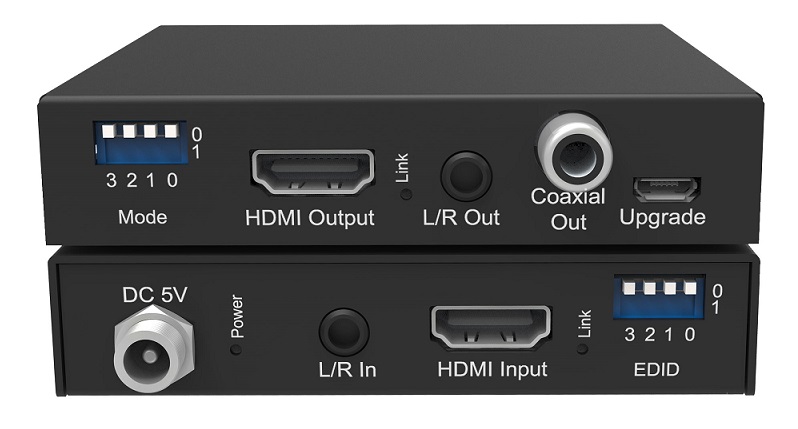

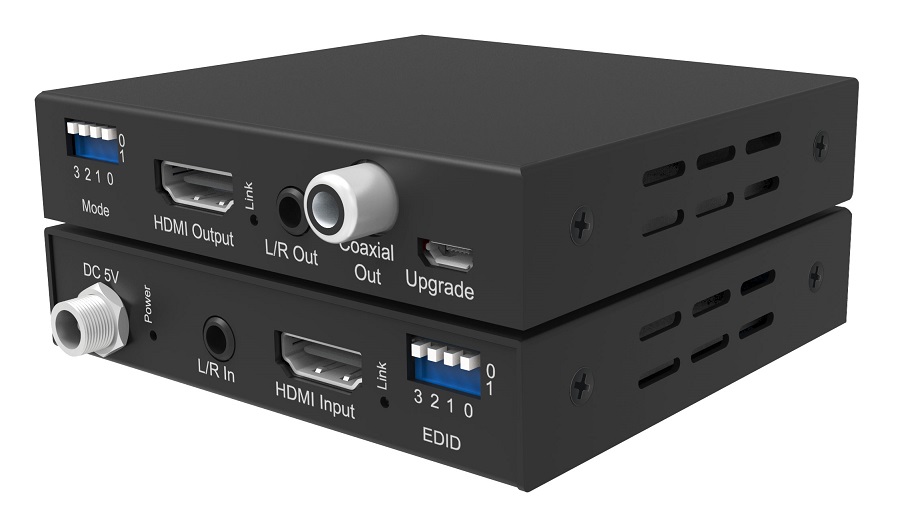

CV0101-NS1

  • 4K@60Hz 4:4:4, HDR10, HLG, DolbyVision and full 3D
  • Downscale 4K to 1080p
  • L/R embedding for HDMI input or analogue & digital audio de-embedding from output
  • ARC and CEC pass through
  • EDID management
  • HDCP 2.2 compliant

CV0101-NS1

  • 4K@60Hz 4:4:4, HDR10, HLG, DolbyVision and full 3D
  • Downscale 4K to 1080p
  • L/R embedding for HDMI input or analogue & digital audio de-embedding from output
  • ARC and CEC pass through
  • EDID management
  • HDCP 2.2 compliant

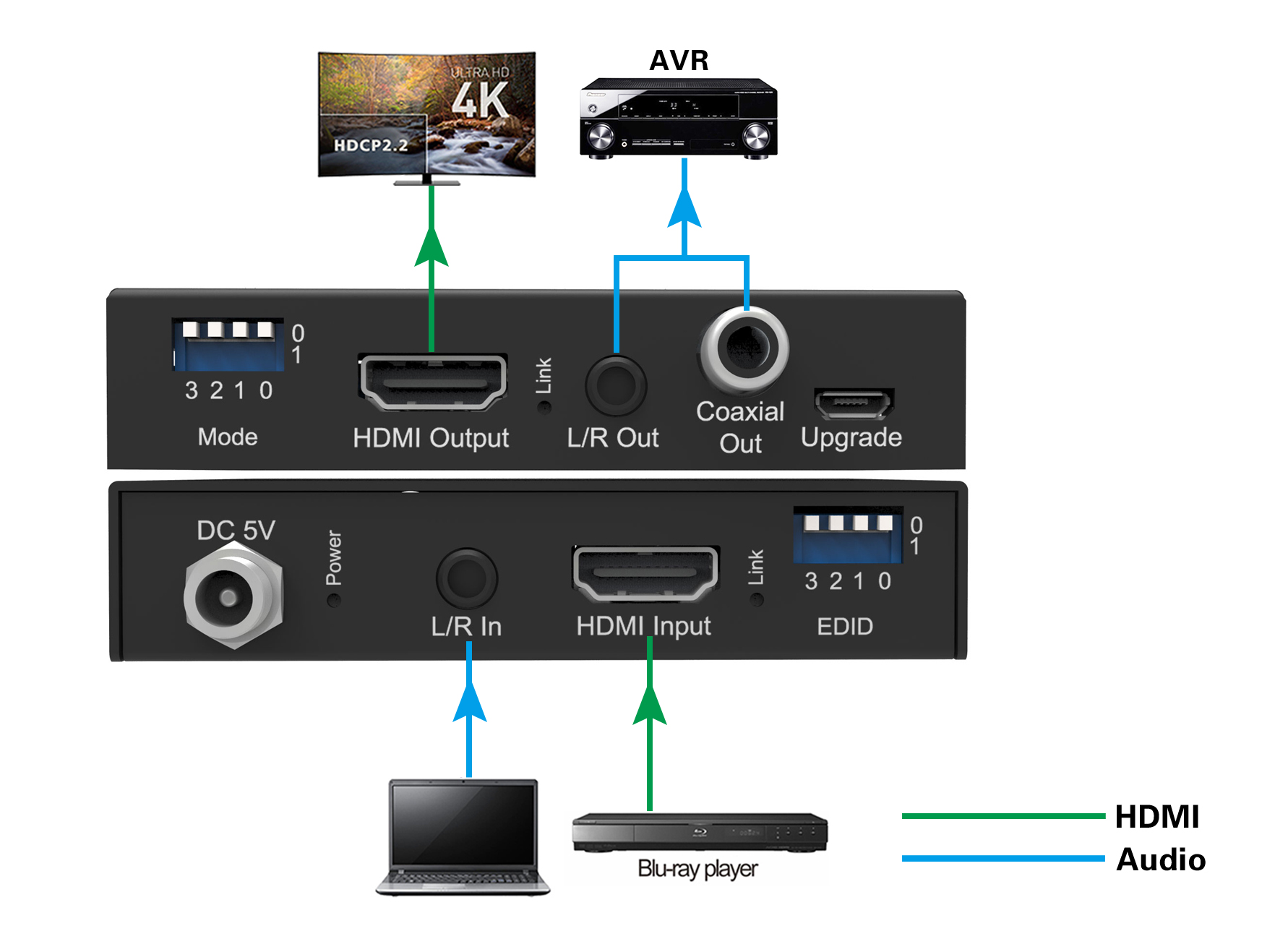

  • The CV0101-NS1 is designed to downscale 4K to 1080p with three selectable modes, which are Auto, Force 1080p and Bypass. It is capable of extracting the audio via L/R stereo output from HDMI source while the other mode for removing the original audio of HDMI source and embed auxiliary audio via L/R input to the HDMI output. It also features embedded pre-set EDID’s as testing device in the video signal chain.


    Features:

    • 4K@60Hz 4:4:4, full 3D
    • HDCP 2.2/ HDCP 1.x and DVI compliant
    • Supports down scale 4K to 1080p
    • Three output modes: Auto, Force 1080p and Bypass
    • Audio extract from HDMI Input for both SPDIF and L/R audio outputs
    • L/R stereo audio embed to HDMI Output selectable
    • All PCM, Dolby and DTS audio formats pass through
    • Supports HDCP management
    • Supports EDID management
    • CEC and ARC pass through
    • Supports RS-232 API control
    • With ESD protection


  • Bandwidth

    18Gbps

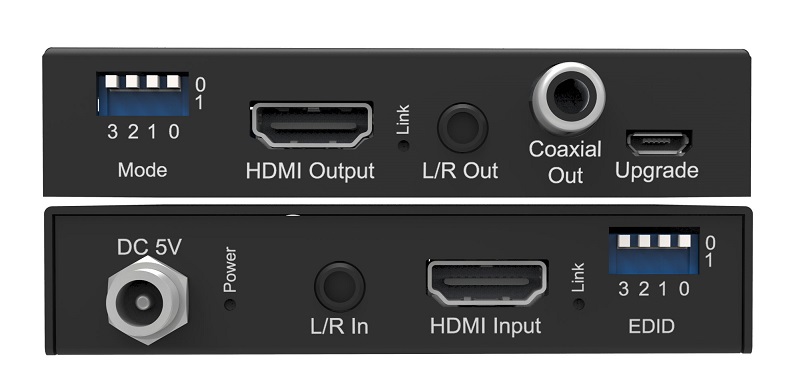

    Video Input Connectors

    1x HDMI Type A, 19-pin, female

    Audio Input Connectors

    1x 3.5mm stereo earphone jack (L/R)

    Video Output Connectors

    1x HDMI Type A, 19-pin, female

    Audio Output Connectors

    1x 3.5mm stereo earphone jack (L/R), 1x RCA (SPDIF)

    EDID

    4-pin DIP Switcher

    Mode

    4-pin DIP Switcher

    Dimensions(W x D x H)

    83mm x 83mm x 17mm, without feet

    Shipping Weight

    0.3KG

    Operating Temperature

    32°F to 104°F (0°C to 40°C)

    Storage Temperature

    -4°F to 140°F(-20°C to 60°C)

    Power Supply

    5V/1A DC
