SG0101-H20
- 33 signal patterns
- 36 CEA video timings and 17 VESA timings
- Supports HDMI I/O Timing/Format/Info Frame/HDCP/ EDID analysis
- 1x HDMI input, 1x optical audio input
- 1x HDMI output, 1x optical audio output
- Video timing 480i to 4K@60Hz 4:4:4
- VESA timing 640x480@60Hz to 2560x1600@60Hz
- HDCP 2.2/ HDCP 1/4/ None-HDCP supported
- Color space supports RGB/YCbCr444/YCbCr422/YCbCr420
- Color depth supports 24/40/36bit
- Built-in HDMI 2.0b HDR testing
|
-

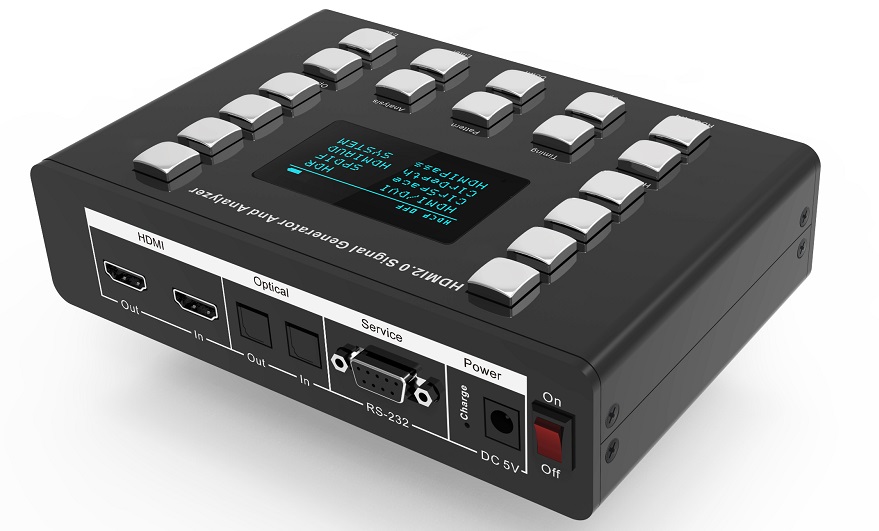

The SG0101-H20 is a professional portable HDMI 2.0 Signal Generator & Analyzer which can be powered by internal battery or AC charger ( charging battery simultaneously). It is designed for the AV Integration market to configure HDMI-2.0 and HDCP-2.2 systems. It can analyze HDMI signal in a full range of resolutions up to 4K@60Hz with 4:4:4 chroma sampling (18Gbps). It helps you to conduct on site testing, pre-installation check and calibrate your AV systems. It is your best choice for system integration, project installation and debugging, cable manufactories, even for engineering and test laboratory.
2024 Best Cartier Replica Watches – Cheap Fake Cartier UK！
The top quality cheap replica omega watches with Swiss movements for modern men and women.
Features:
- HDMI-2.0b and DVI compliant
- HDCP 2.2, HDCP 1.4 and None-HDCP supported
- 33 signal patterns and 55 video resolutions up to 4K@60Hz 4:4:4
- 3000mAh battery powered for portability
- HDMI I/O Timing, Format, Info Frame, HDCP and EDID analysis
- Color Space supports RGB/YCbCr444/YCbCr422/YCbCr420
- Color Depth supports 24, 30, and 36 bit per pixel
- HDMI audio source can select from Internal, External S/PDIF or HDMI Input
- Audio mute/unmute for HDMI output
- Supports all Dolby, DTS and LPCM audio formats (up to 192kHz)
- EDID memory integrated supports copy, read and write
- CEC test for source and sink
- HDR (High Dynamic Range) testing & analysis
- OLED display for status feedback
- RS232 serial port for firmware upgrade
-
Signal
Bandwidth
18 Gbps
CEC
Supports CEC test for source and sink
HDCP
HDCP-2.2, HDCP-1.4 and None-HDCP supported
Video
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Color Space
RGB, YCbCr 4:4:4, YCbCr4:2:2, YCbCr4:2:0
Color depth
8-bit, 10-bit, 12-bit
Audio
Bit Rate
24-bit (Maximum)
Sample Rate
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Formats
Internal: LPCM 2CH, 48kHz, 16bits
External SPDIF: LPCM 2/5.1CH, Dolby Digital, DTS 5.1
HDMI Pass-through: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

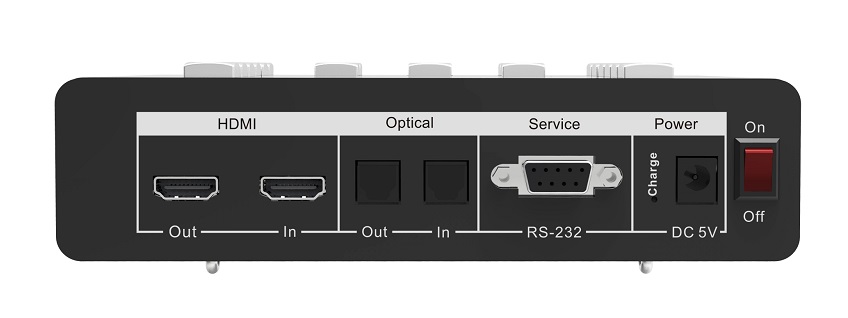

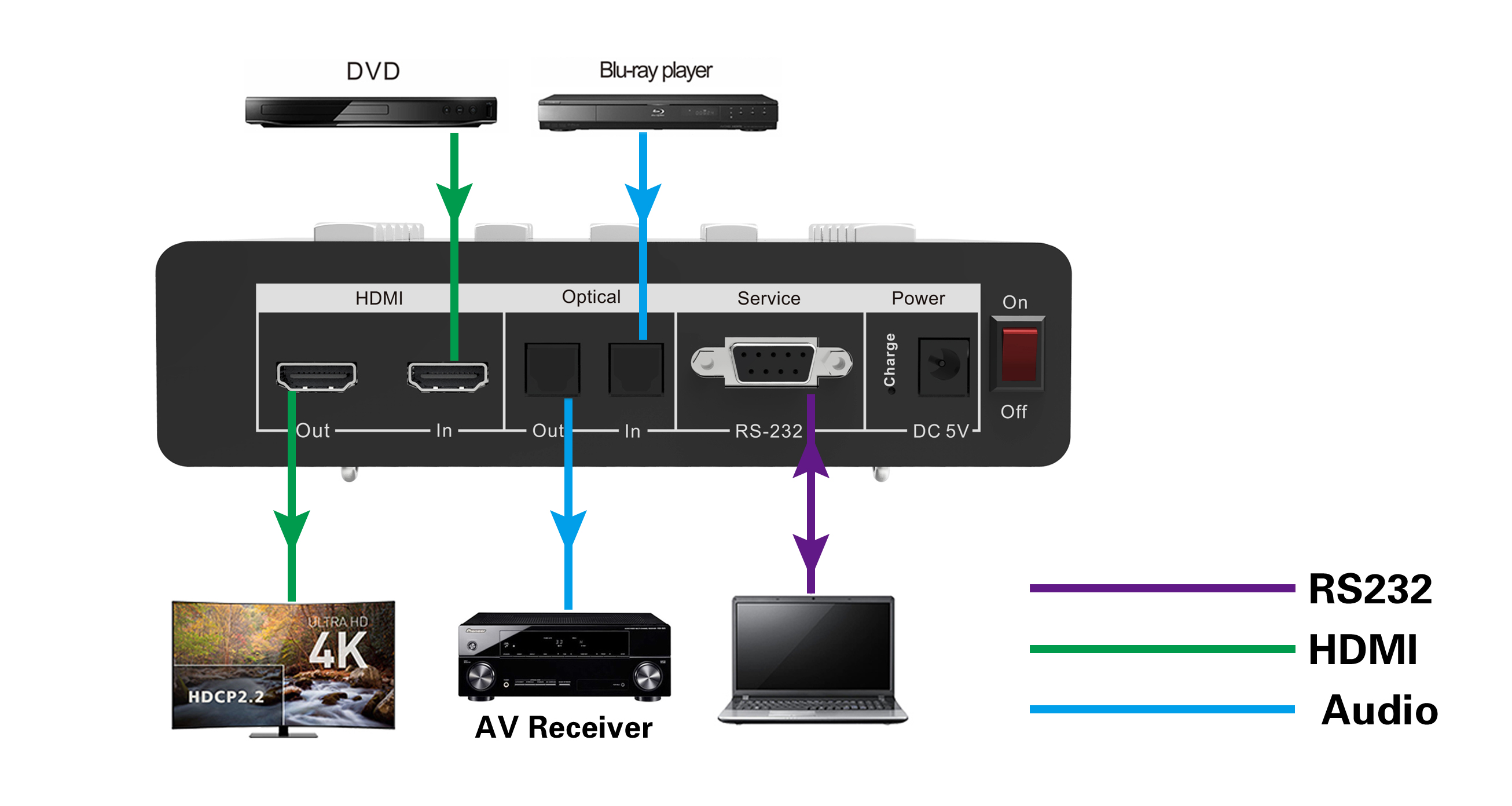

I/O
