Product details

ET0102-LP7/VL8A

  • 4K@60Hz 4:2:0, full 3D
  • 1080p up to 70m/230ft, 4K up to 40m/130ft
  • 1x HDMI loop out on TX
  • Analogue & digital audio breakouts at RX side
  • IR, RS-232  pass through
  • PoC supported
  • EDID management
  • HDCP 2.2 compliant

ET0102-LP7/VL8A

  • 4K@60Hz 4:2:0, full 3D
  • 1080p up to 70m/230ft, 4K up to 40m/130ft
  • 1x HDMI loop out on TX
  • Analogue & digital audio breakouts at RX side
  • IR, RS-232  pass through
  • PoC supported
  • EDID management
  • HDCP 2.2 compliant

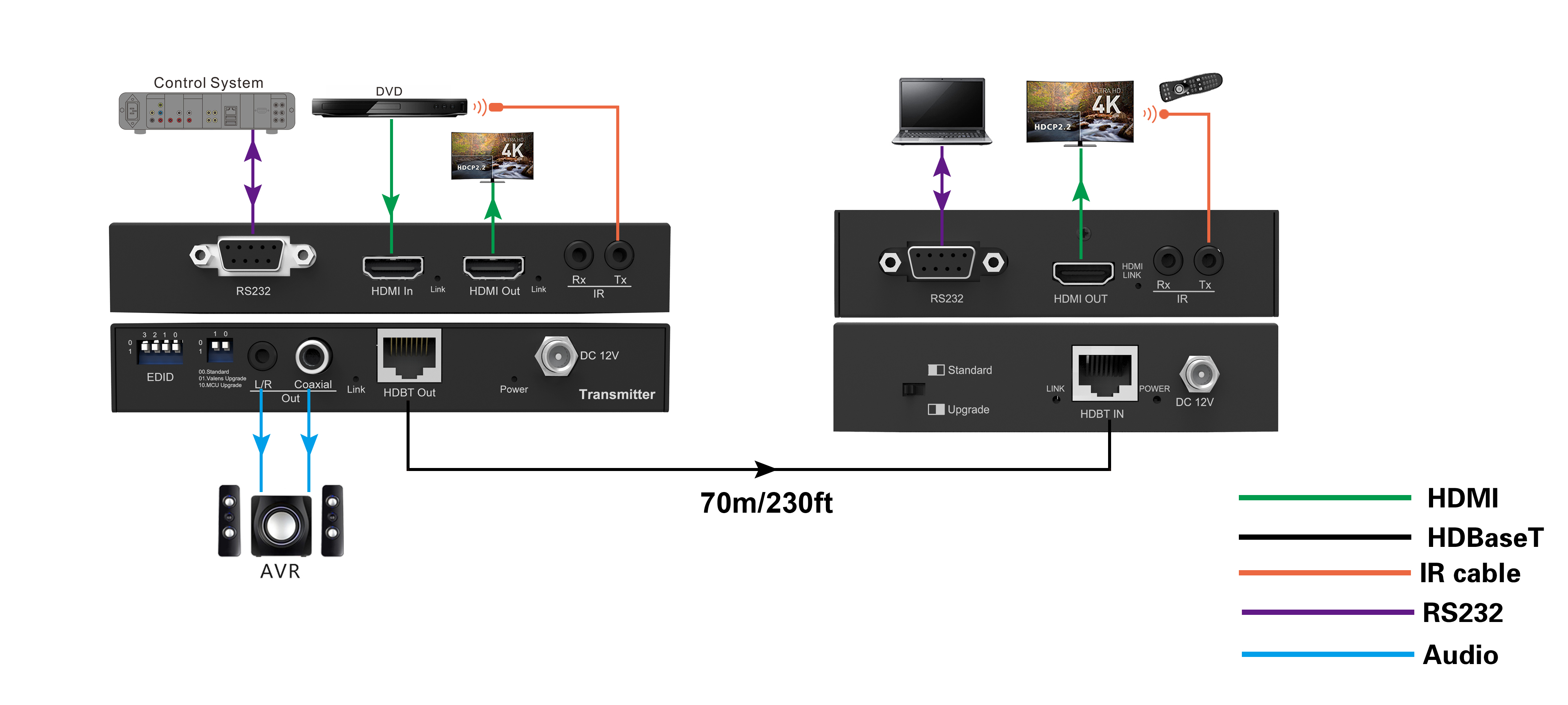

  • The ET0102-LP7&ET0101-VL8A is a 4K HDCP 2.2 HDBaseT extender set which can extend HDMI, Bi-directional IR & RS-232 and Bi-directional PoC (Power over cable) up to lengths of 70m/230ft. The Transmitter includes a HDMI loop-out for integrating local display or cascading to multiple devices. Besides, the Transmitter also features simultaneous analogue audio and digital audio breakout.

    Es gibt nur wenige Wartungspunkte, und uhren replica das allgemeine Kundendienstzentrum befindet sich nur in großen Städten wie Peking, Shanghai und Guangzhou und kann nur an breitling replica die ursprüngliche Schweizer Fabrik zurückgeschickt werden.


    Would you like to buy breitling replica watches for sale? This website uswatchesreplica.com/ can off help.
    What kinds of 1:1 Swiss cheap Replica Watches US are worth having? Perfect fake watches at our online store with cheap price and high quality.
    sluxurywatches.com


    Features:



    • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable.
    • Supports 1080p up to 70m/230ft, 4K up to 40m/130ft.
    • Supports 1x HDMI loop out on Transmitter for integrating local display or cascading to multiple devices.
    • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K.
    • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission.
    • Analogue L/R audio and digital audio breakout on TX unit
    • Supports Bi-directional RS-232 pass through
    • Supports Bi-directional IR pass through
    • Advanced EDID management
    • HDCP-2.2 compliant




  • ET0102-LP7

    ET0101-VL8A

    Video input:

    1x HDMI Type A, female

    1x HDBaseT RJ45 connector

    Video output:

    1x HDBaseT RJ45 connector

    1x HDMI Type A, female

    1x HDMI Type A, female

    Audio output:

    1x 3.5mm L/R analogue audio,

    1x digital optical (SPDIF)

    N/A

    RS-232 serial port:

    1x DB9 female connector

    1x DB9 female connector

    IR input:

    1x 3.5mm stereo jack

    1x 3.5mm stereo jack

    IR output:

    1x 3.5mm mono jack

    1x 3.5mm mono jack

    EDID DIP switch:

    4-pin

    N/A

    Dimensions (W x D x H)

    139mm x 114mm x 22mm

    109mm x 110mm x 22mm

    Shipping weight(kit):

    0.5kg

    0.4kg

    Power Supply:

    12V/2A DC, screw type connector

    12V/2A DC, screw type connector

    Operating temperature:

    32°F to 104°F (0°C to 40°C)

    32°F to 104°F (0°C to 40°C)

    Storage temperature

    4°F to 140°F (-20°C to 60°C)

    4°F to 140°F (-20°C to 60°C)
