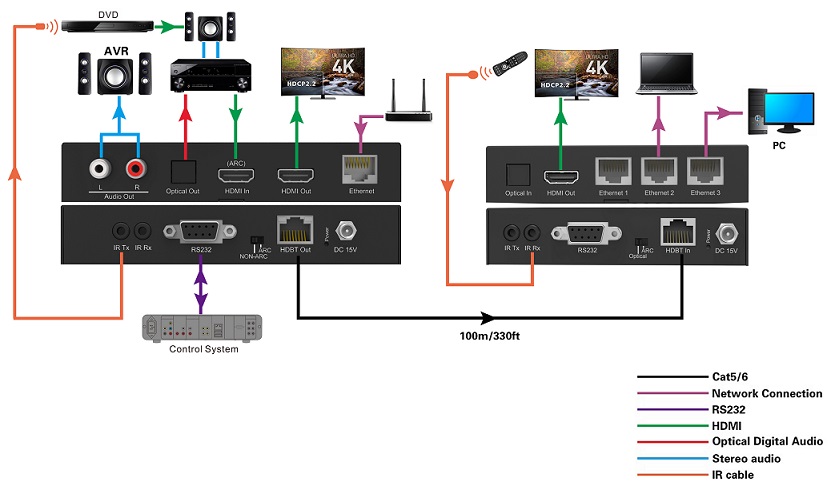

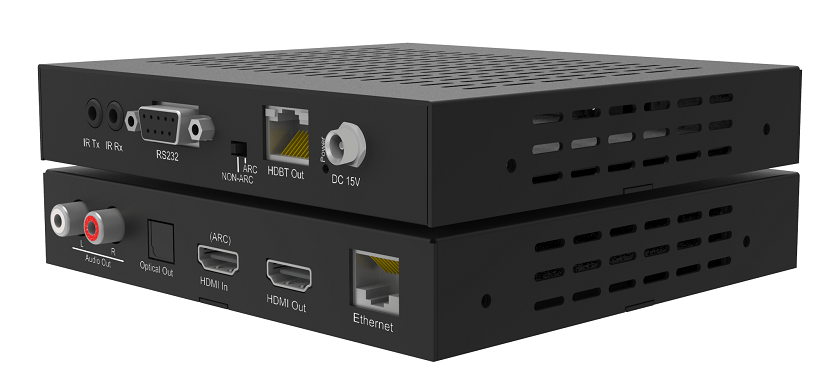

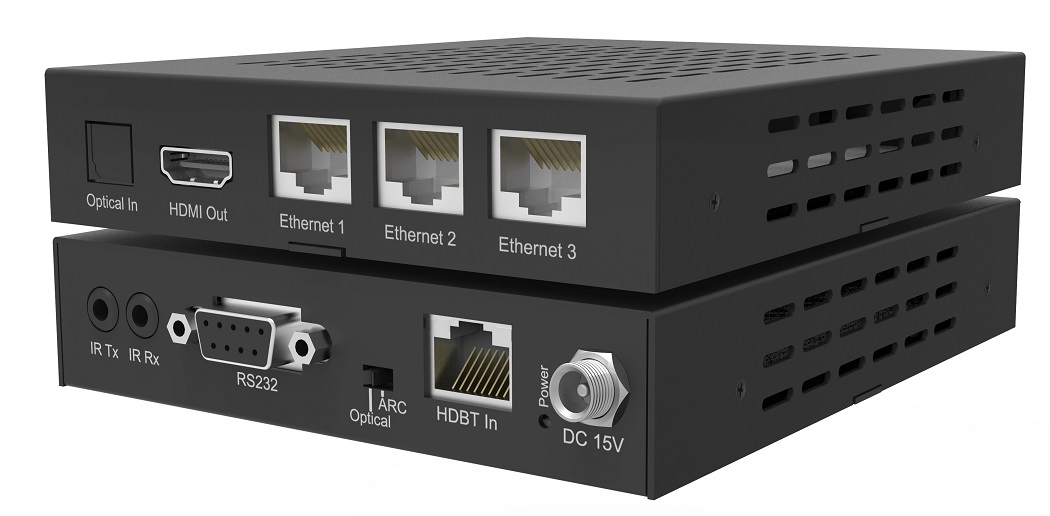

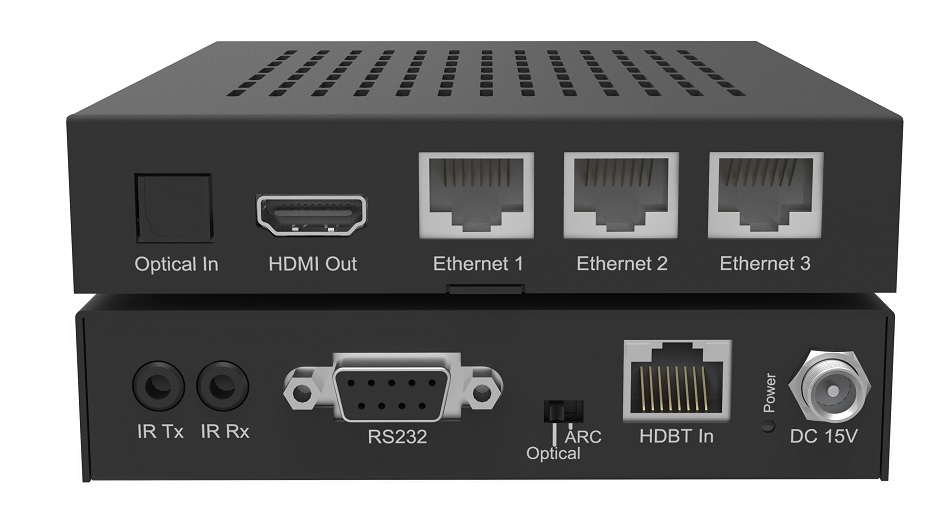

The ET0102-FP1/ ET0101-AP2 is a 4K HDCP 2.2 HDBaseT extender set which features ARC (Audio Return Channel) and 3-way Ethernet switch. This kit can extend HDMI, Bi-directional IR & RS-232 and Bi-directional PoC (Power over cable) up to lengths of 100m/330ft.The Transmitter includes a HDMI loop-out for integrating local display or cascading to multiple devices. Toslink input receiver can work with legacy products for audio return to audio surround receiver. Besides, the audio from ARC (TV with ARC) can also be extracted via both Toslink and L/R at transmitter side.
getreplica.org

aawatches.uk

bingwatches.com

Features:

• Audio Return Channel (ARC) supported backwards Toslink input.
• Audio extractor for ARC at transmitter side via Toslink and L/R
• 3-way Ethernet switcher embedded
• Supports 4K UHD video up to 70m/230ft, and 1080p up to 100m/330ft.
• Features 1x HDMI loop out for integrating local display or cascading to multiple devices
• Supports ARC (Audio Return Channel) from display via HDMI and Optical digital inputs (ARC feature supports distance of up to 90m)
• Bi-Directional IR, RS232 pass through.
• Dolby TrueHD and DTS-HD master audio pass through HDMI output
• POC (Power over cable) supported, only one power supply needed at either transmitter or receiver side.
• HDCP 2.2 compliant
