Product details
ET0101-GP3/GP4
- 4K@60Hz 4:2:0, full 3D
- 1080p up to 100m/330ft, 4K up to 90m/295ft
- Long cable mode supported. 108t0p up to 150m/490ft
- IR, RS-232 and Ethernet pass through
- PoC supported
- HDCP 2.2 compliant
|
-

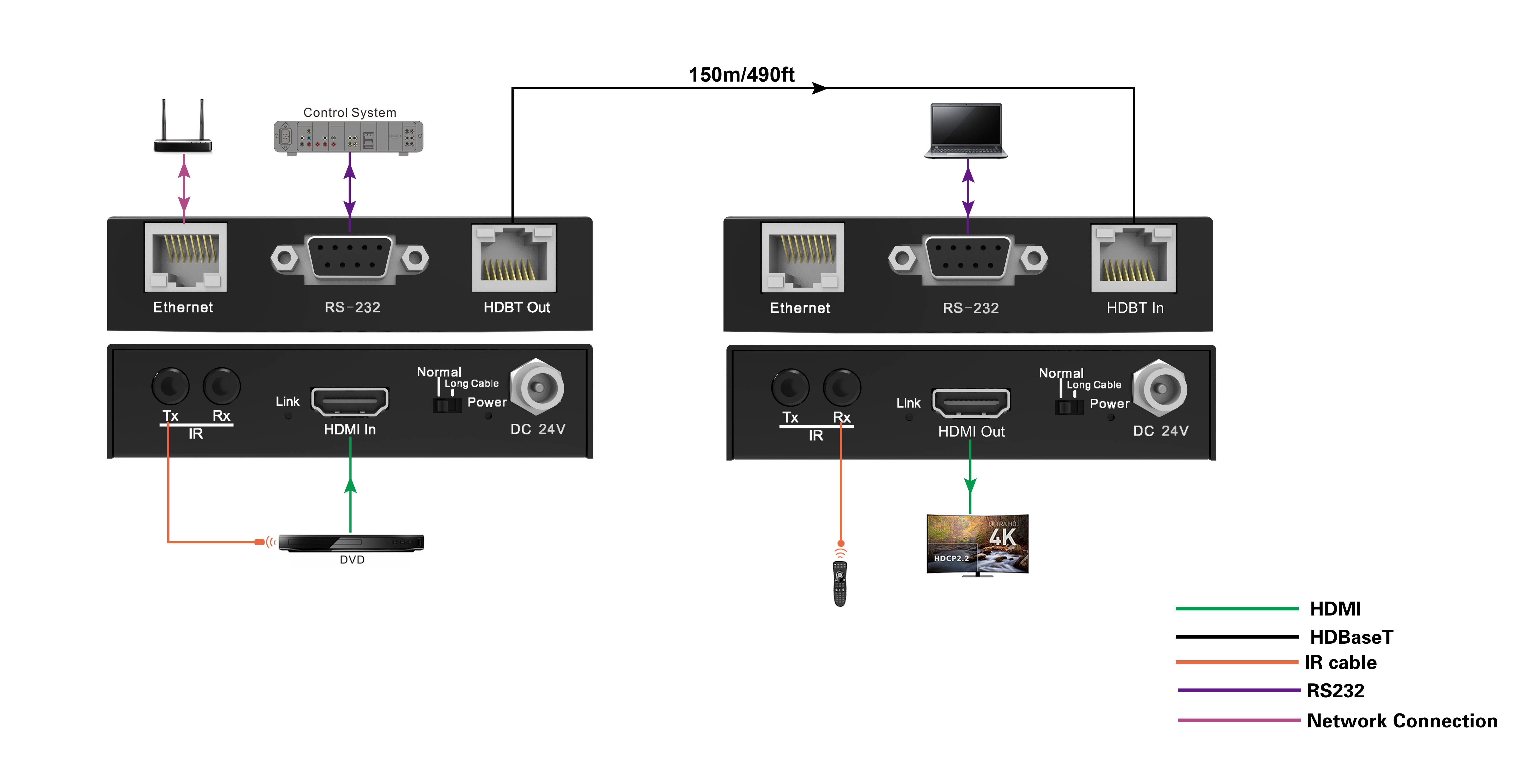

The ET0101-GP3&ET0101-GP4 extender set is an HDBaseT 2.0 HDMI Extender featured Normal and Long reach mode selection. This kit can extend HDMI signal up to a distance of 150m(490ft) for 1080p@60 at Long reach mode over single CAT cable. And also supports 1080p up to 100m/330ft, 4K up to 100m/330ft at Normal mode. Bi-directional IR, RS232 and POC also can be transmitted over the same CAT cable.
Features:
- Featured smart HDBaseT 2.0 technology
- Long reach mode supported.
- Supports 4K@60Hz 4:2:0 8bit/4K@24Hz 4:4:4 8bit, full 3D
- Supports 1080p up to 150m/490ft at Long reach mode. And 1080p up to 100m/330ft, 4K up to 100m/330ft at Normal mode
- Bi-directional IR, RS232, Ethernet pass through
- Bi-directional 24V/PoC (Power over cable) to power extenders from either transmitter or receiver end
-
HDCP 2.2
compliantreplica uhren
profumi dupe dupe profumi burberry dupe profumi hermes dupe profumi guerlain
-

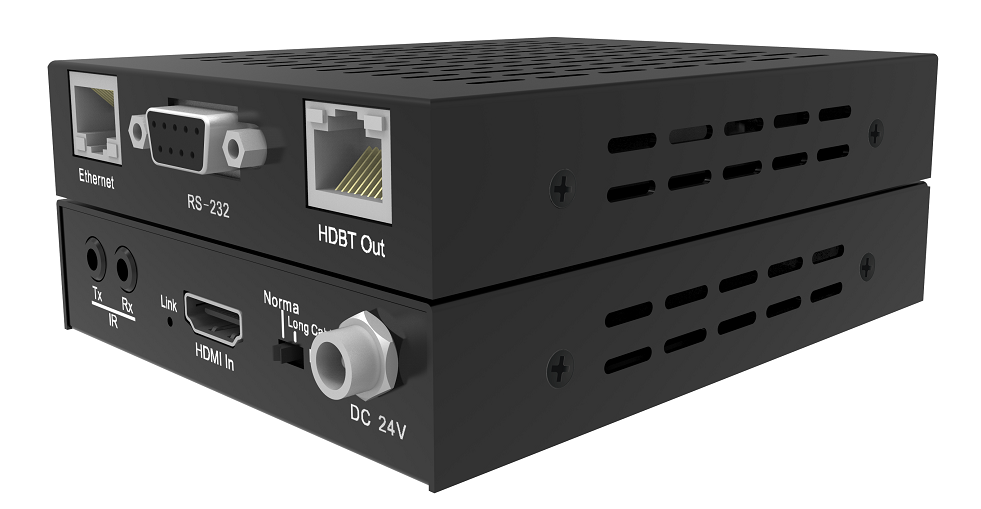

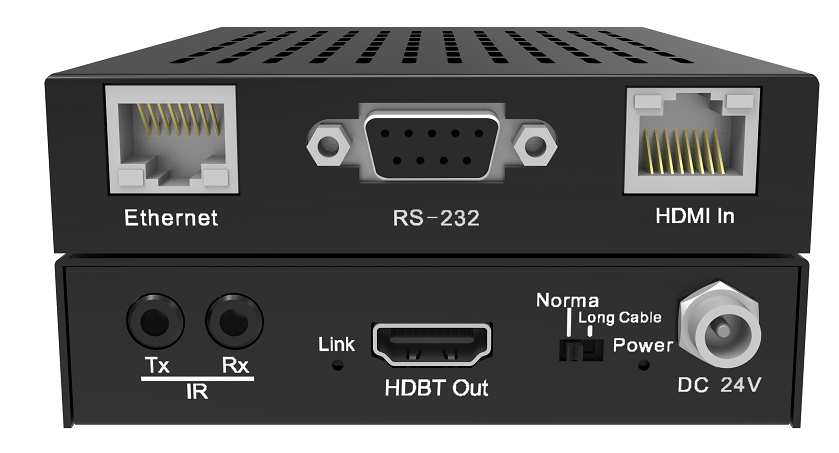

ET0101-GP3
ET0101-GP4
Video Input Connectors:
1x HDMI Type A, 19-pin female
1x HDBaseT RJ45 connector
Video output Connectors:
1x HDBaseT RJ45 connector
1x HDMI Type A, 19-pin female, locking
RS232 serial port
1x DB9female connector
1x DB9 female connector
Ethernet port
1x RJ45, female
1x RJ45, female
IR Input ports:
1x 3.5mm stereo jack
1x 3.5mm stereo jack
IR Output ports:
1x 3.5mm mono jack
1x 3.5mm mono jack
Dimensions (W x H x D)
121mm x 95mm x 23mm
121mm x 95mm x 23mm
Shipping Weight:
0.2kg
0.2kg
Operating Temperature
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
-4°F to 140°F (-20°C to 60°C)
Power Supply:
24V/1A DC, Screw Connector
24V/1A DC, Screw Connector
-
