Product details

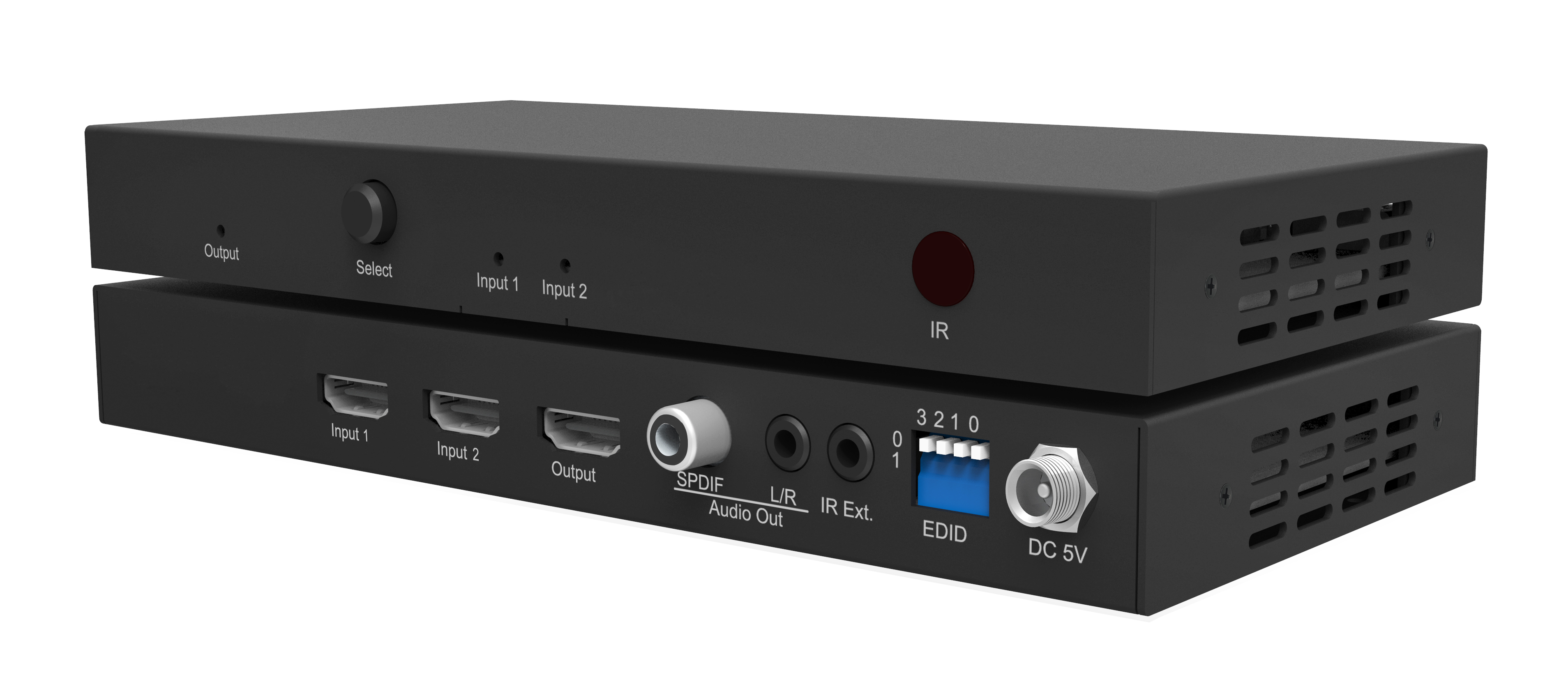

ST0201-NA1

  • 2x HDMI input, 1x HDMI output
  • 4K@60Hz 4:4:4, HDR10, HLG, DolbyVision and full 3D
  • Analogue & digital audio de-embedding from output
  • IR for control
  • EDID management
  • HDCP 2.2 compliant

ST0201-NA1

  • 2x HDMI input, 1x HDMI output
  • 4K@60Hz 4:4:4, HDR10, HLG, DolbyVision and full 3D
  • Analogue & digital audio de-embedding from output
  • IR for control
  • EDID management
  • HDCP 2.2 compliant

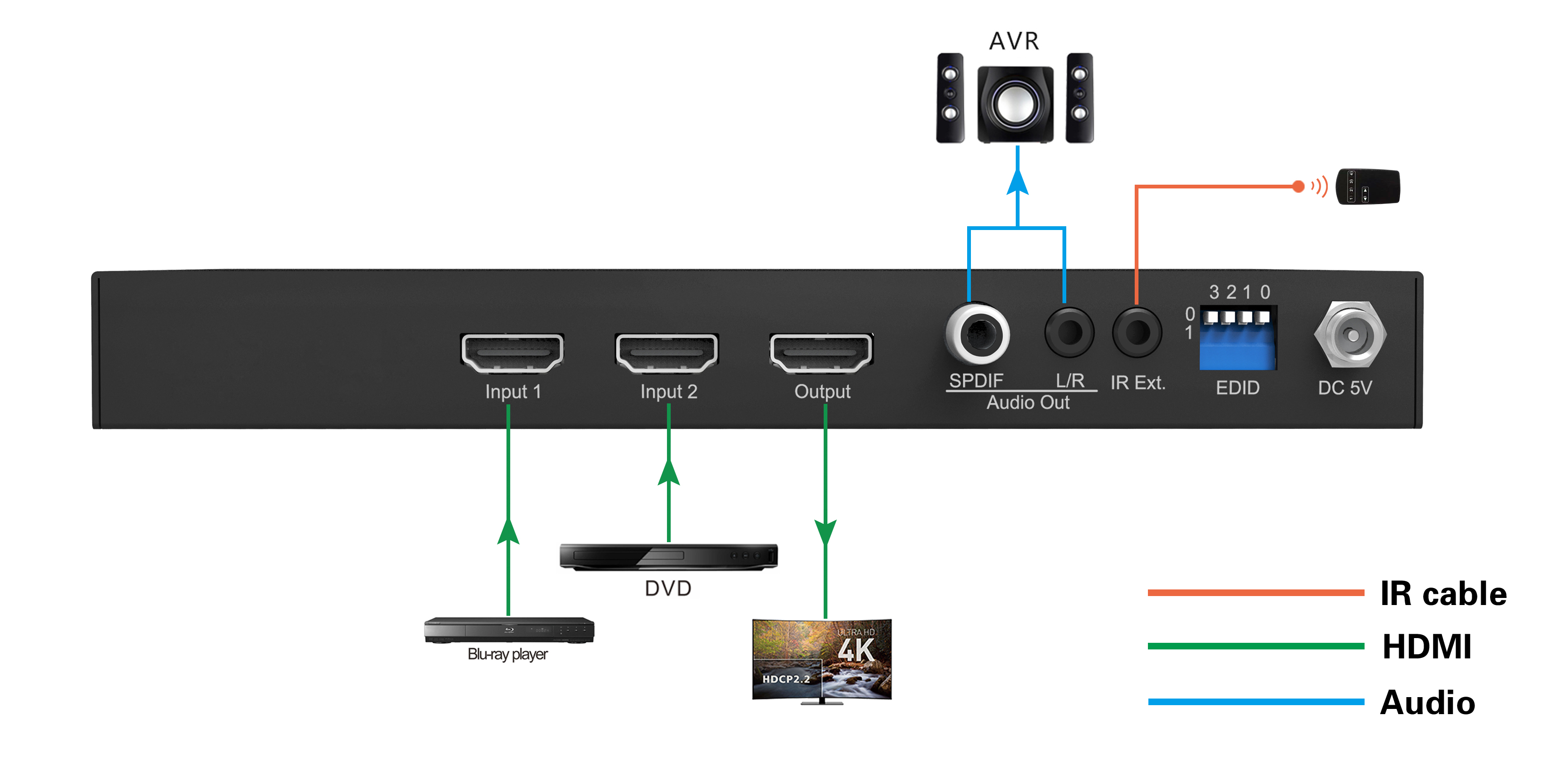

  • The ST0201-NA1 2x1 Switcher for HDMI switches between any of two DVI or HDMI audio/video sources to one HDTV display, supporting 1080p Full HD up to 4K@60Hz 4:4:4 UHD plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Embedded audio extractors can extract the audio and output via L/R and Coaxial.
    UK automatic cheap Replica Watches uk for men here are at affordable prices. All the collections are available.
    If you like forever classic and elegant wrist cheap replica watches, you had better choose rolex fake watches uk online shop.
    Buy luxury cheap cartier replica watches for best sale for males and females.


    Features:



    • Supports resolutions up to 4K@60Hz 4:4:4
    • HDCP 2.2/HDCP 1.x and DVI compliant
    • Switches 2 HDMI sources to 1 output without loss
    • Extract the audio from HDMI source via analog and digital outputs.
    • Dolby TrueHD and DTS-HD master audio pass through HDMI output
    • Advanced EDID management for rapid integration of sources and displays
    • Easy installation with rack-mounting ears
    • Full 3D pass- through.



  • Bandwidth

    18Gbps

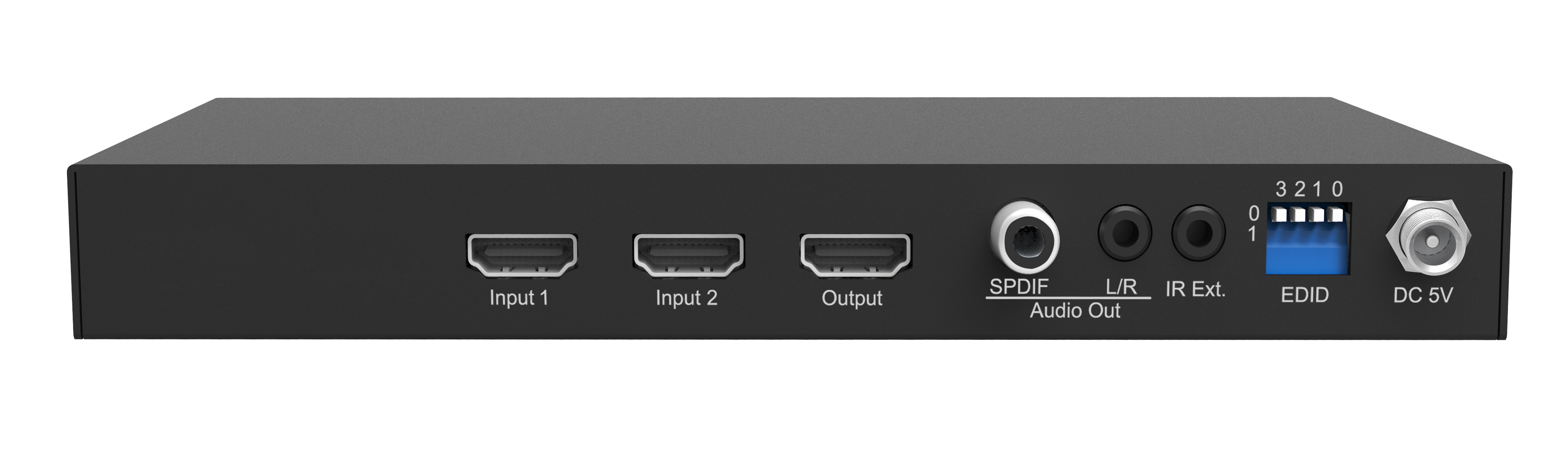

    Video Input Connectors

    2x HDMI Type A, 19-pin, female

    Video Output Connectors

    1x HDMI Type A, 19-pin, female

    Audio Output Connectors

    1x RCA(S/PDIF), 1x 3.5mm stereo jack (L/R)

    EDID

    4-PIN DIP Switch

    Mounting kit

    Rack-mounting ears included

    Operating Temperature

    32°F to 104°F (0°C to 40°C)

    Storage Temperature

    - 4°F to 140°F (- 20°C to 60°C)

    Power Supply

    5V/1A DC
