Product details
ET0102-GD3/GD4A
- 4K@60Hz 4:4:4, HDR10, HLG and full 3D
- 1080p up to 100m/330ft, 4K up to 90m/295ft
- Long cable mode supported. 1080p up to 150m/490ft
- 1x HDMI loop out on TX
- Audio Return Channel supported
- SPDIF (Toslink) audio pass through from RX to TX
- Audio extractor for ARC at TX side via Toslink and L/R
- Analogue & digital audio breakouts at RX side
- IR, RS-232 and Ethernet pass through
- PoC supported
- EDID management
- HDCP 2.2 compliant





-

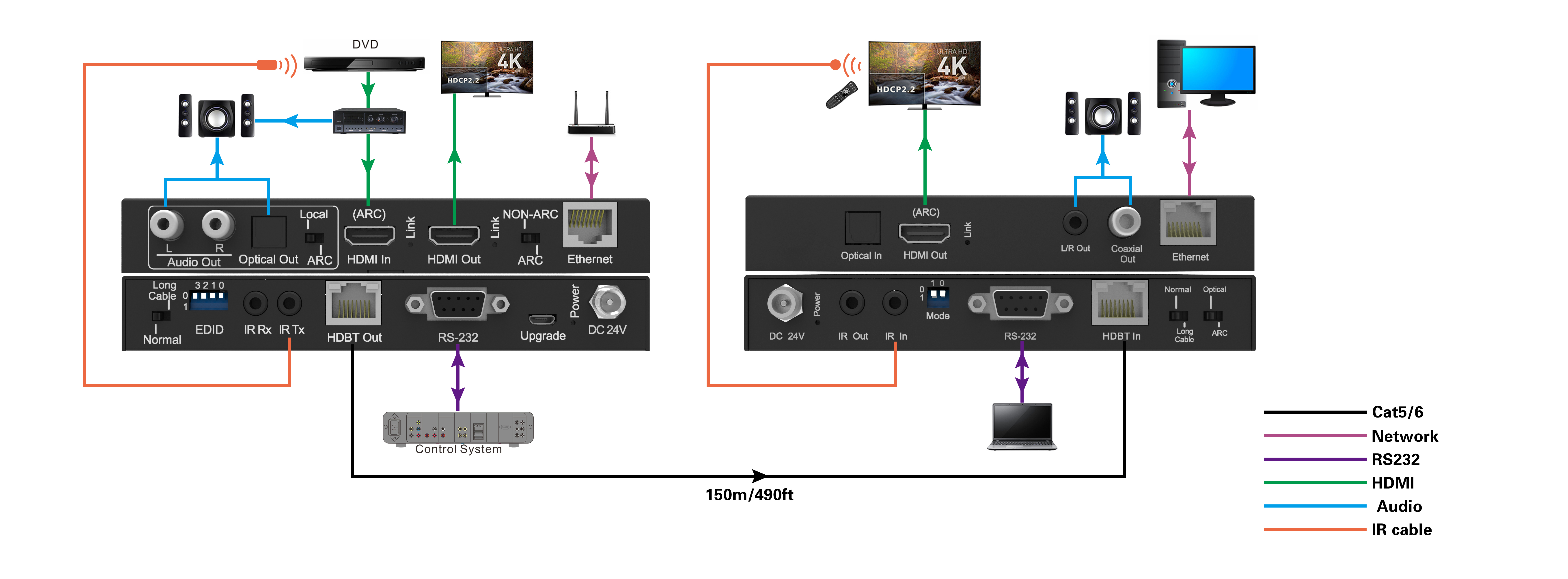

The ET0102-GD3&ET0101-GD4A extender set is an industry leading 4K HDBaseT solution offers the very best in performance and flexibility. This kit uses smart CSC (Display Stream Compression) technology with no latency to enable HDR and 4K/60Hz 4:4:4 video signal extension over HDBaseT. It can extend HDMI signal up to a distance of 100m(330ft) for 4K@60Hz (YUV 4:4:4) and 150m(490ft) for 1080p@60 over single CAT cable at Long cable mode.Bi-directional IR, RS232 and PoC(Power over cable) also can be transmitted over the same CAT cable.Toslink input receiver can work with legacy products for audio return to audio surround receiver. The audio from ARC (TV with ARC) can also be extracted via both Toslink and L/R at transmitter side. Besides, the transmitter includes a HDMI loop out for integrating local display or cascading to multiple devices.
2024 New AAA+ Quality Omega Replica Watches UK: Omegafamily.me
2024 Top Websites To Buy cheap fake rolex uk
Swiss automatic cheap Replica Watches at affordable prices for men and women.
Features:
- Supports resolution up to 4K@60Hz (YUV4:4:4 or RGB), plus HDR and full 3D formats
- Long reach mode supported.
- Extends HDMI up to a distance of 100m 4K@60 (YUV 4:4:4) and 150m 1080p@60 over single CAT cable
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K(3840 x 2160 @60Hz 4:4:4, 3840 x 2160 @60Hz 4:2:2, 3840 x 2160 @60Hz 4:2:0)
- Supports 3D signal display
- Supports ARC (Audio Return Channel) from display via HDMI and Optical digital inputs
- Supports audio return to HDMI, Optical digital and analogue L/R audio outputs (DAC PCM only)
- Support audio de-embedding on RX unit.
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Bi-directional IR, RS-232 and Ethernet pass through
- Bi-directional 24V/PoC (Power over cable) to power extenders from either transmitter or receiver end
- HDCP 2.2 compliant
-

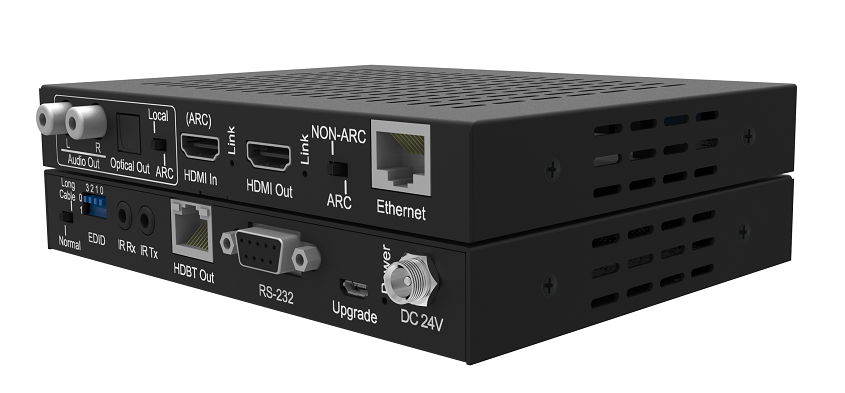

ET0102-GD3

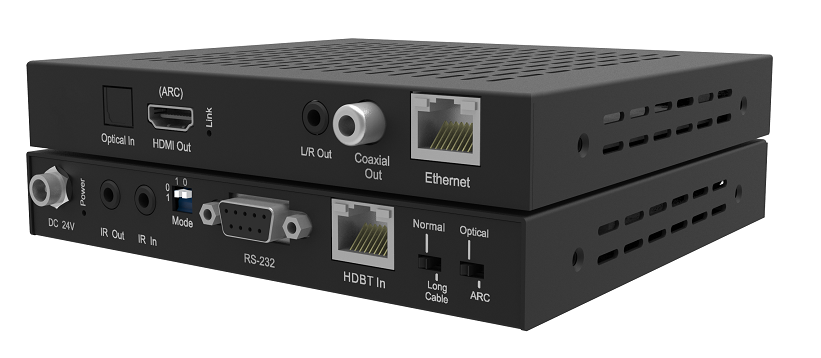

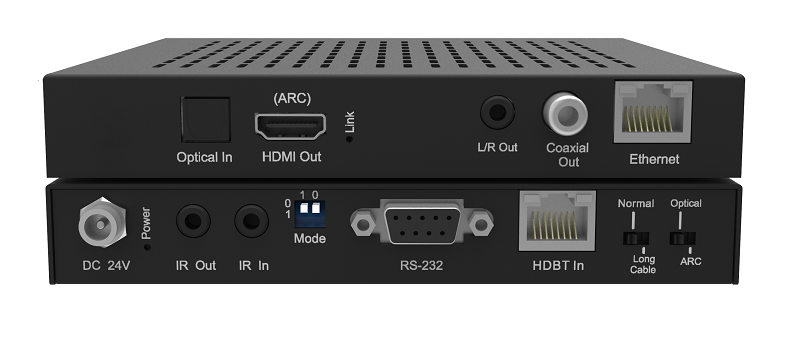

ET0101-GD4A
Video Input Connectors:
1x HDMI Type A, 19-pin female
1x HDBaseT RJ45 connector
Video output Connectors:
1x HDMI Type A, 19-pin female
1x HDBaseT RJ45 connector
1x HDMI Type A, 19-pin female, locking
Audio Output Connectors:
2x RCA (L/R) Analogue, 1x Optical (TOSLINK)
2x RCA (L/R) Analogue, 1x Optical (TOSLINK)
Audio Input Connectors:
N/A
1x Optical (TOSLINK)
RS232 serial port
1x DB9 female connector
1x DB9 female connector
Ethernet port
1x RJ45, female
1x RJ45, female
IR Input ports:
1x 3.5mm stereo jack
1x 3.5mm stereo jack
IR Output ports:
1x 3.5mm mono jack
1x 3.5mm mono jack
Dimensions (W x H x D)
157mm x 23mm x 123mm
149mm x 23mm x 135mm
Shipping Weight:
0.45kg
0.35kg
Operating Temperature
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
-4°F to 140°F (-20°C to 60°C)
Power Supply:
24V/1A DC,Screw Connector
24V/1A DC, Screw Connector
-
