Product details
ET0101-GD1/GD2
- 4K@60Hz 4:4:4, HDR10, HLG and full 3D
- 1080p up to 100m/330ft, 4K up to 90m/295ft
- Audio Return Channel supported
- SPDIF (Toslink) audio pass through from RX to TX
- Audio extractor for ARC at TX side via Toslink and L/R
- Analogue & digital audio breakouts at RX side
- IR, RS-232 and Ethernet pass through
- PoC supported
- EDID management
- HDCP 2.2 compliant
|
-

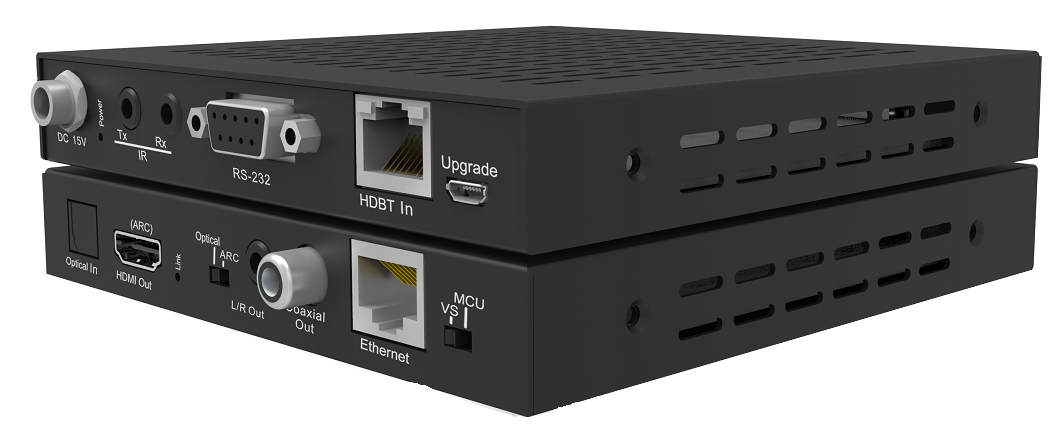

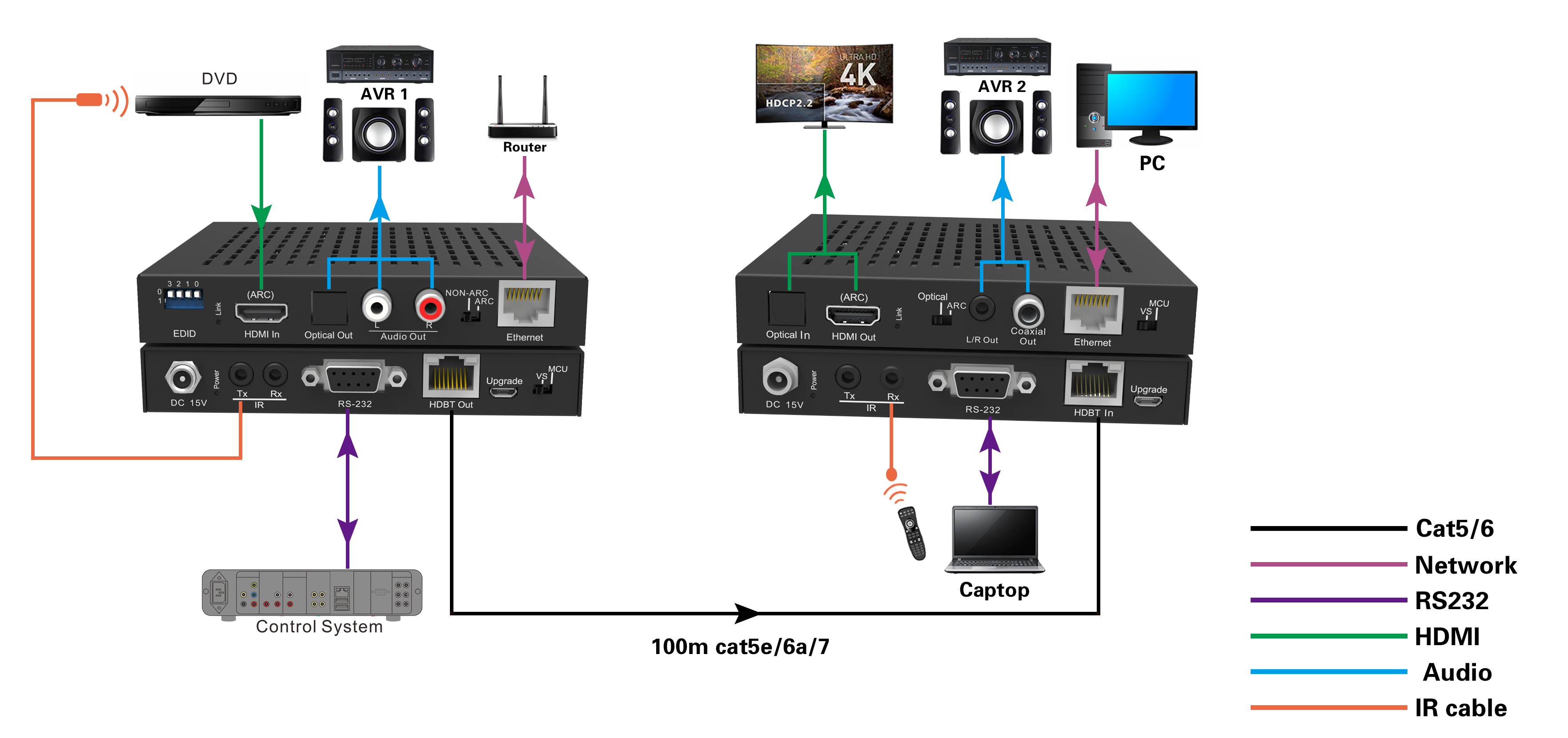

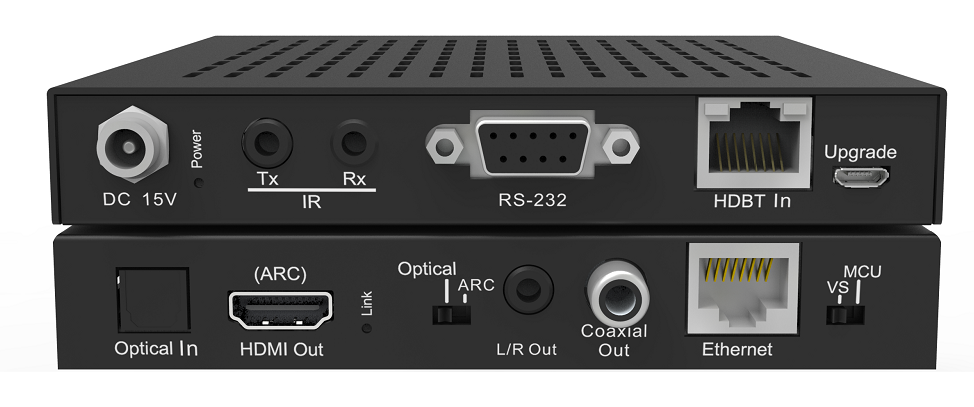

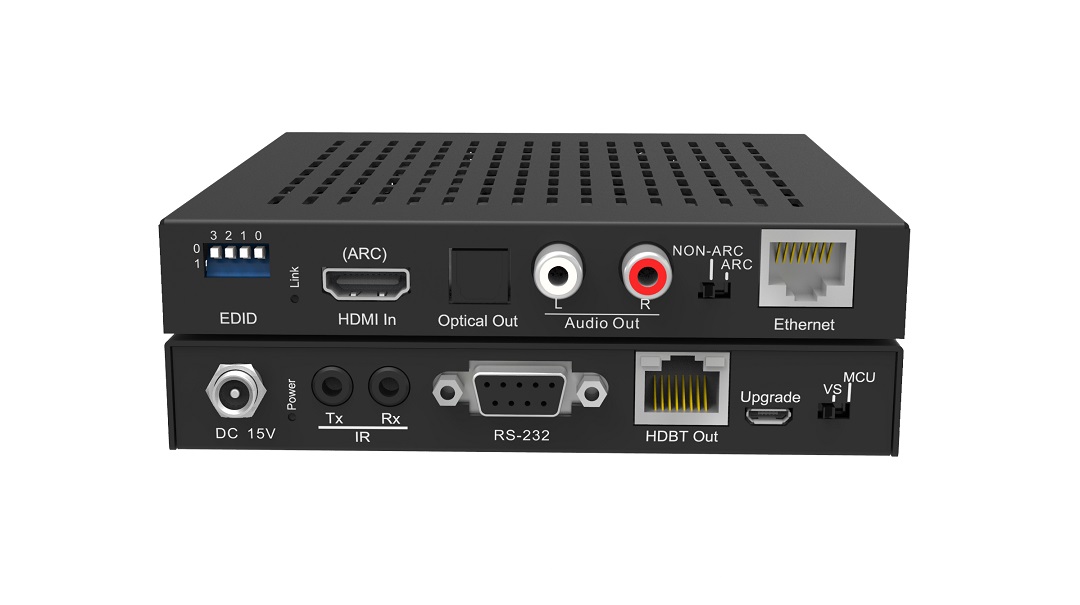

The ET0101-GD1 (Transmitter) &ET0101-GD2 (Receiver)is a HDMI 2.0 HDBaseT extender Kit with ARC (Audio Return Channel) feature. This kit uses smart CSC (Color Space Conversion) technology with no latency to enable HDR and 4K/60Hz 4:4:4 video signal extension over HDBaseT. It transmits 1080p@60Hz up to 100m (330ft) and 4K@60Hz(YUV4:4:4) to 90m (295ft) via Cat5e/Cat6/7 cable. Bi-directional IR, RS232 and Ethernet can also be transmitted over the same Cat5e/Cat67 cable. With supporting of bi-directional POH only one power supply is needed at either TX or RX side. Toslink input receiver can work with legacy products for audio return to audio surround receiver. Besides, audio from ARC can also be extracted via both Toslink and L/R at TX side. The extender can also be used stand-alone as an Audio extender.
Features:
- Supports resolution up to 4K@60Hz (YUV4:4:4 or RGB), plus HDR and full 3D formats
- 1080p up to 100m/330ft, 4K up to 90m/295ft.
- Audio Return Channel (ARC) supported backwards Toslink input.
- Audio extractor for ARC at TX side via Toslink and L/R.
- Digital and analog audio breakouts at RX side.
- Transmission distance for ARC up to 100m using STP (TE CONNECTIVITY 219420-2).
- Dolby TrueHD and DTS-HD master audio pass through HDMI output
- Bi-directional IR and RS232 and Ethernet pass through
- POH (Power over HDBaseT) Supported, only one power supply is needed at TX or RX side.
- HDCP-2.2/HDCP 1.x and DVI compliant
- Supports EDID management
- With ESD protection
-
Signal
Bandwidth
18Gbps
CEC
Supports CEC pass through
HDCP
2.2 and 1.x backward compatible
Video
HD/SD
4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA
2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200,
1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768, 1024x768, 800x600, 640x480
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Color Space
YUV, RGB
Color depth
8-bit, 10-bit, 12-bit
Audio
Bit Rate
24-bit (Maximum)
Sample Rate
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Formats
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD, Master Audio™, Dolby Atmos®, DTS:X
Resolution / Distance
HDMI
4K - 15ft/5m; 1080P – 30ft/10m
CAT5e/6
4K -115ft/35m; 1080P – 200ft/60m
CAT6a/7
4K -130ft/40m; 1080P – 230ft/70m
Temperature
Operating
32°F to 104°F (0°C to 40°C)
Storage
-4°F to 140°F (-20°C to 60°C)
Humidity (RH)
20% to 90%, non-condensing
Power
Consumption
TBD
Idle consumption
TBD
Supply
Input: 100-240V AC, 50/60Hz, Output: 24V DC
Dimensions & Weight
Dimensions
ET0101-GD1: 135x143x22mm
ET0101-GD2: 135x143x22mm
Weight
ET0101-GD1: 508g
ET0101-GD2: 508g
-
